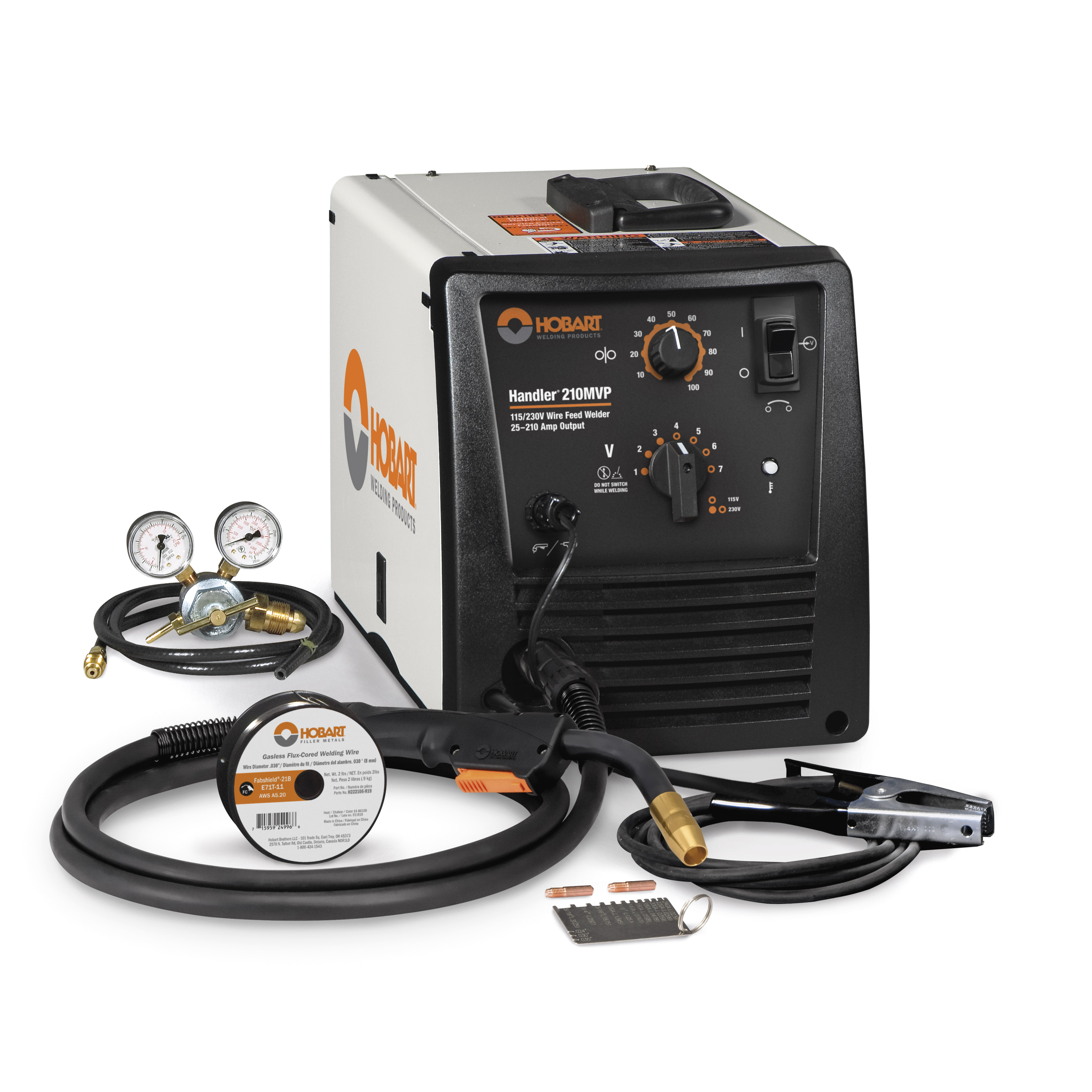

Hobart Handler 210MVP MIG Welder

Features

• Max 210 amps in small portable case: Sized for you to easily transport the unit to the jobsite with the power to weld 3/8 in mild steel.
• 7 (230 V) and 4 (115V) voltage settings, with infinite wire feed speed control: Allows you to fine control the output parameters for improved arc performance with less spatter for a better bead appearance and less clean up.
• Accepts uncomplicated, simple-to-install direct plug-in SpoolRunner 100 spool gun: Allows you to weld aluminum with enhanced feed ability and reduction of “bird-nesting
• Integrated spool gun control circuitry is standard: Eliminates your need for an additional control box or adaptor to connect the SpoolRunner 100 spool gun
• Dual-voltage capability with MVP (multi-voltage plug): Allows you to connect to common 115 or 230 V power receptacles without the use of any tools - simply choose the plug that fits the receptacle
• Door Chart with initial settings: You are able to quickly reference initial settings for different Wire, gases, materials, and thicknesses. Provides you a quick starting point whether you are a novice or professional.
• Built-in contactor: Keeps wire electrically “cold” until trigger is pulled which gives you ease of use and keeps you safe
• Industrial cast aluminum wire drive system: Durable wire feed provides you professional performance
• Convenient polarity changeover: Easier and quicker for you to change polarity between solid or tubular wire
• Quick Select drive roll: Less of your time consumed in setup by offering three grooves – two for different size solid wire and a third for flux-cored wire
• Short circuit protection: Protects unit against current overload.

Specifications

• Country of Origin: United States
• Length: 19.5
• Width: 10.625
• Height: 12.375
• Weight: 79
• Max Open Circuit Voltage: 34 VDC
• Input Phase: Single Phase
• Amperage Min: 25 A
• Amperage Max: 210 A
• Min Wire Feed Speed - IPM: 40 IPM
• Max Wire Feed Speed - IPM: 770 IPM
• Input Voltage: 110V | 115V | 120V | 220V | 230V | 240V
• Min Thickness - in - Mild Steel: 0.25 in
• Max Thickness - in - Mild Steel: 0.375 in
• Current Type: DC
• Weldable Metals: Aluminum | Stainless Steel | Steel
• Input Hz: 60 Hz
• Material Thickness Display: Mild Steel 24 ga. (0.5 mm) - 3/8 in (9.5 mm)
• Wire Diameter Display: Stainless 0.024 in - 0.035 in | Stainless 0.6 mm. - 0.9 mm. | Solid Steel 0.6 mm. - 0.9 mm. | Solid Steel 0.024 in - 0.035 in | Flux Cored 0.03 in - 0.045 in | Flux Cored 0.8 mm. - 1.2 mm.
• Wire Feed Speed Display: 40 IPM - 770 IPM

Downloads

Spec Sheet
