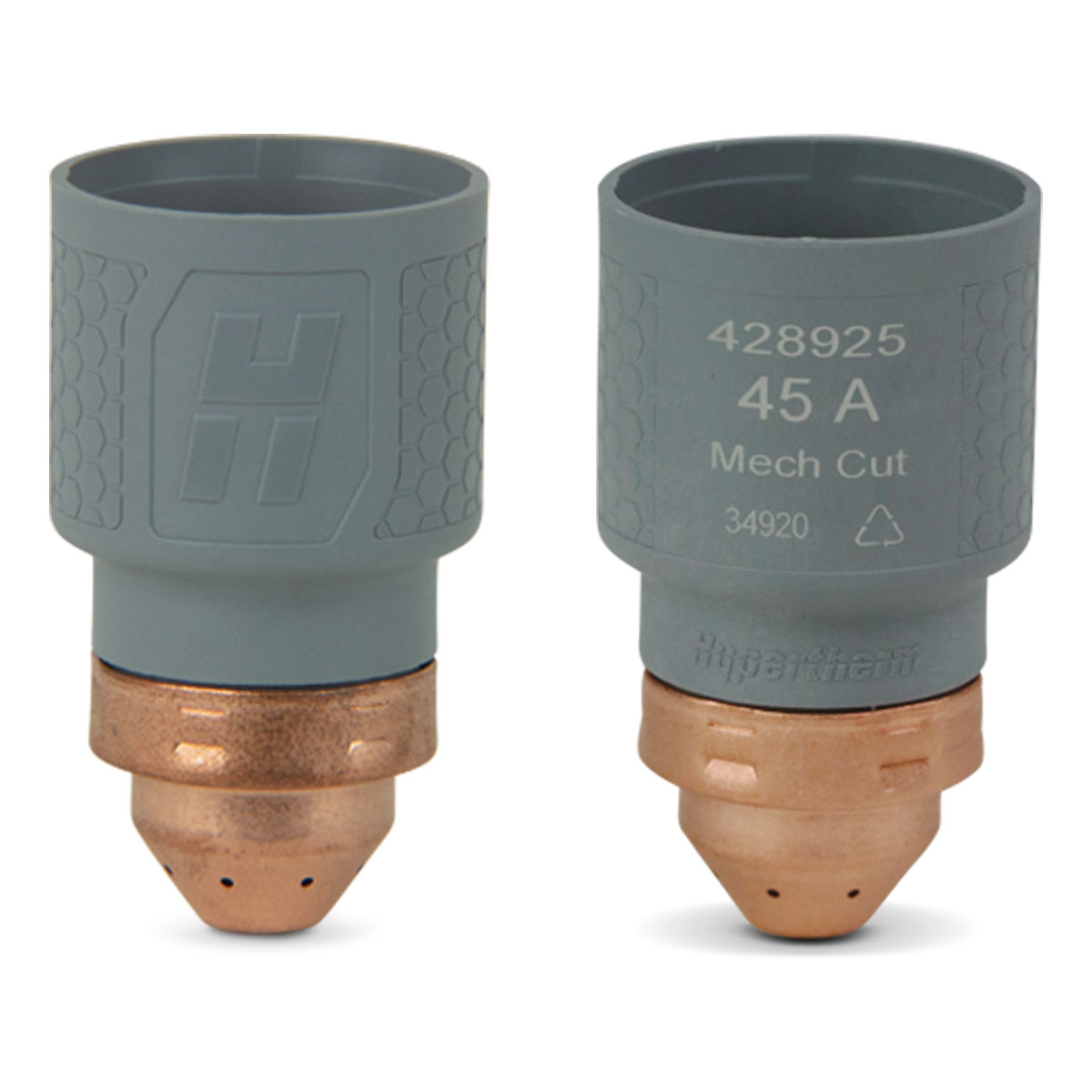

Hypertherm Cartridge – SmartSYNC or Adapter 45 A Mechanized Cutting

Features

• 45 A mechanized cartridges provide optimal production performance when cutting within the thickness range of 3 mm (1/8″) to 6 mm (1/4″) thick. Exceeding optimal thickness range can result in decreases in speed and cut quality. To maximize cartridge life and performance select the correct amperage cartridge for the workpiece you are cutting.
• When using a mechanized cartridge with a torch adapter on a Duramax machine torch refer to the Cut charts guide for cartridge adapter on Duramax torches (811300MU). Optional ohmic ring torch height sensor kits are also available.

Specifications

• Weight: .4166
• Product Line: Powermax
• Max Output Currents: 45 A
• Min Output Currents: 20 A
• Platforms: Automated | Handheld | Pipe and Tube | Robotic | Track | XY Cutting
• Technologies: Plasma
