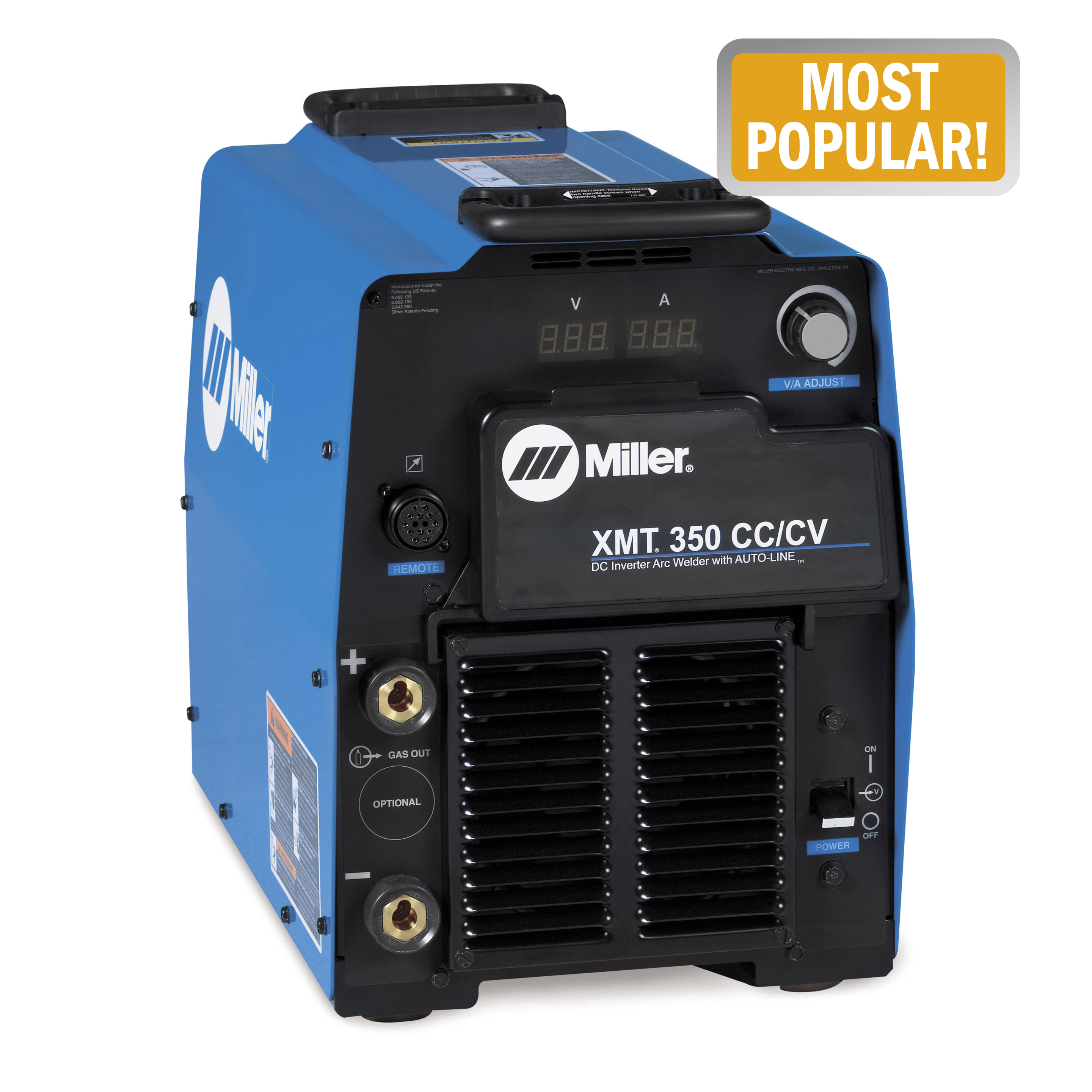

Miller XMT 350 CC/CV, Dinse

Features

• Dinse- or Tweco®-style weld cable connectors provide high-quality weld cable connections. (Note: Two Dinse connectors are supplied with each Dinse machine Tweco connectors must be ordered separately)
• Wind Tunnel Technology™ protects internal components, greatly improving reliability Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine
• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency
• Has the flexibility to be used with spool guns, feeders, and remote controls.
• Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage Large, dual digital meters are easy to view and presettable to ease setting weld output.
• Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting IDeal solution for dirty or unreliable input power

Specifications

• Country of Origin: United States
• Length: 26
• Width: 20
• Height: 16
• Weight: 80
• Rated Carbon Diameter: 1/4 in (6.4 mm)
• Input Hz: 50/60 Hz
• Input Voltage: 208 V|220/230/240 V|380/400/440 V|460/480 V|575 V
• Weldable Metals: Aluminum|Specialty Metals|Stainless Steel|Steel
• Current Type: DC
• Weld Output: CC / CV
• Input Phase - To Be Deleted: 1and3phase
• Amperage Range: 15 A - 425 A
