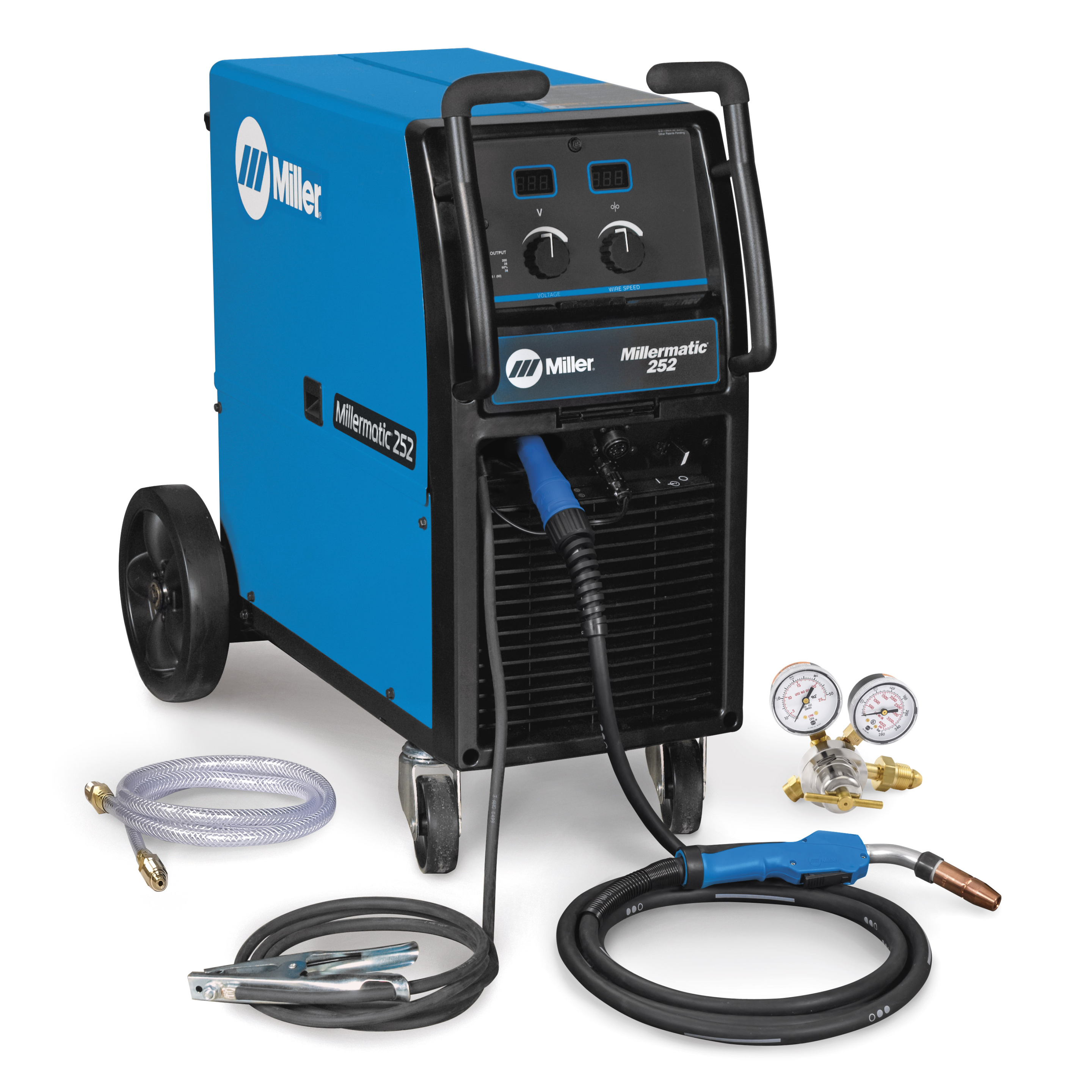

Miller Millermatic 252 MIG Welder 230/460/575V

Features

• Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.
• Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun Automatically detects and recalls the voltage, wire feed speed and timer of the active gun
• Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun This saves time by reducing trips back to the machine Also compatible with more industrial Spoolmatic 15A or 30A spool gun
• Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.
• Allows operators to easily roll cylinders on and off of rack - no need to lift cylinders.
• Set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables.

Includes

• Millermatic® 252
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/ Bernard® AccuLock™ MDX consumables for .030/.035 in (0.8/0.9 mm) wire
• 10 ft (3 m) industrial power cord
• 10 ft (3 m) work cable and clamp
• Argon mix regulator/flow gauge and hose
• Factory-installed lowered runningt gear/cylinder rack
• .030/.035 in reversibledual-groove drive rolls
• Extra contact tips

Does Not Include

• Your local welding distributor can provide shielding gas, additional welding wire and a full product offering
• Shielding gas (for welding with solid wire [GMAW])
• Flux cored drive rolls (for welding with flux cored wire [FCAW])
• Spool Gun (for welding aluminum)
• Welding wire
• Personal safety products (helmet, gloves)

Specifications

• Country of Origin: United States
• Length: 40
• Width: 19
• Height: 30
• Weight: 205
• Material Thickness Display: Aluminum 14 ga. (1.9 mm) - 3/8 in (9.5 mm)|Mild Steel 22 ga. (0.6 mm) - 1/2 in (12.7 mm)
• Max Wire Feed Speed - IPM (IPM): 700
• Input Phase: 1-Phase
• Max Open Circuit Voltage (VDC): 38
• Rated Output: 200 Amps at 24 VDC, 60% duty cycle, 250 Amps at 26.5 VDC, 40% duty cycle
• Display Max Thickness - Mild Steel: 1/2 in (13 mm)
• Max Wire Diameter - in - Stainless (in): 0.045
• Min Wire Feed Speed - m/min (mmin): 1.3
• Min Wire Diameter - mm - Stainless (mm): 0.6
• Max Wire Diameter - mm - Solid Steel (mm): 1.2
• Min Thickness - mm - Aluminum (mm): 1.9
• Amperage Max (A): 300
• Min Thickness - ga - Mild Steel (ga): 22
• Spool Size: 12 in (305 mm)
• Display Min Thickness - Aluminum: 14 ga. (1.9 mm)
• Wire Feed Speed Display: 1.3 m/min - 17.8 m/min| 50 IPM - 700 IPM
• Wire Diameter Display: Stainless 0.023 in - 0.045 in|Stainless 0.6 mm. - 1.2 mm.|Solid Steel 0.6 mm. - 1.2 mm.|Solid Steel 0.023 in - 0.045 in|Flux Cored 0.03 in - 0.045 in|Flux Cored 0.8 mm. - 1.2 mm.
• Display Max Thickness - Aluminum: 3/8 in (9.5 mm)
• Current Type: DC
• Min Thickness - mm - Mild Steel (mm): 0.9
• Max Thickness - mm - Mild Steel (mm): 13
• Min Wire Diameter - mm - Flux Cored (mm): 0.8
• Min Wire Diameter - in - Stainless (in): 0.023
• Min Wire Diameter - in - Flux Cored (in): 0.03
• Min Wire Diameter - in - Solid Steel (in): 0.023
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Min Thickness - ga - Aluminum (ga): 14
• Weld Output: CV
• Max Wire Diameter - in - Solid Steel (in): 0.045
• Amperage Range: 30 A - 300 A
• Max Thickness - mm - Aluminum (mm): 9.5
• Input Voltage: 208 V|220/230/240 V
• Display Min Thickness - Mild Steel: 22 ga. (0.9 mm)
• Input Phase - To Be Deleted: 1Phase
• Max Wire Feed Speed - m/min (mmin): 17.8
• Max Wire Diameter - in - Flux Cored (in): 0.045
• Max Thickness - in - Aluminum (in): 0.38
• Min Wire Diameter - mm - Solid Steel (mm): 0.6
• Amperage Min (A): 30
• Material Type: Solid Steel|Stainless|Flux Cored
• Min Wire Feed Speed - IPM (IPM): 50
• Input Hz: 60 Hz
• Max Wire Diameter - mm - Flux Cored (mm): 1.2
• Max Wire Diameter - mm - Stainless (mm): 1.2
