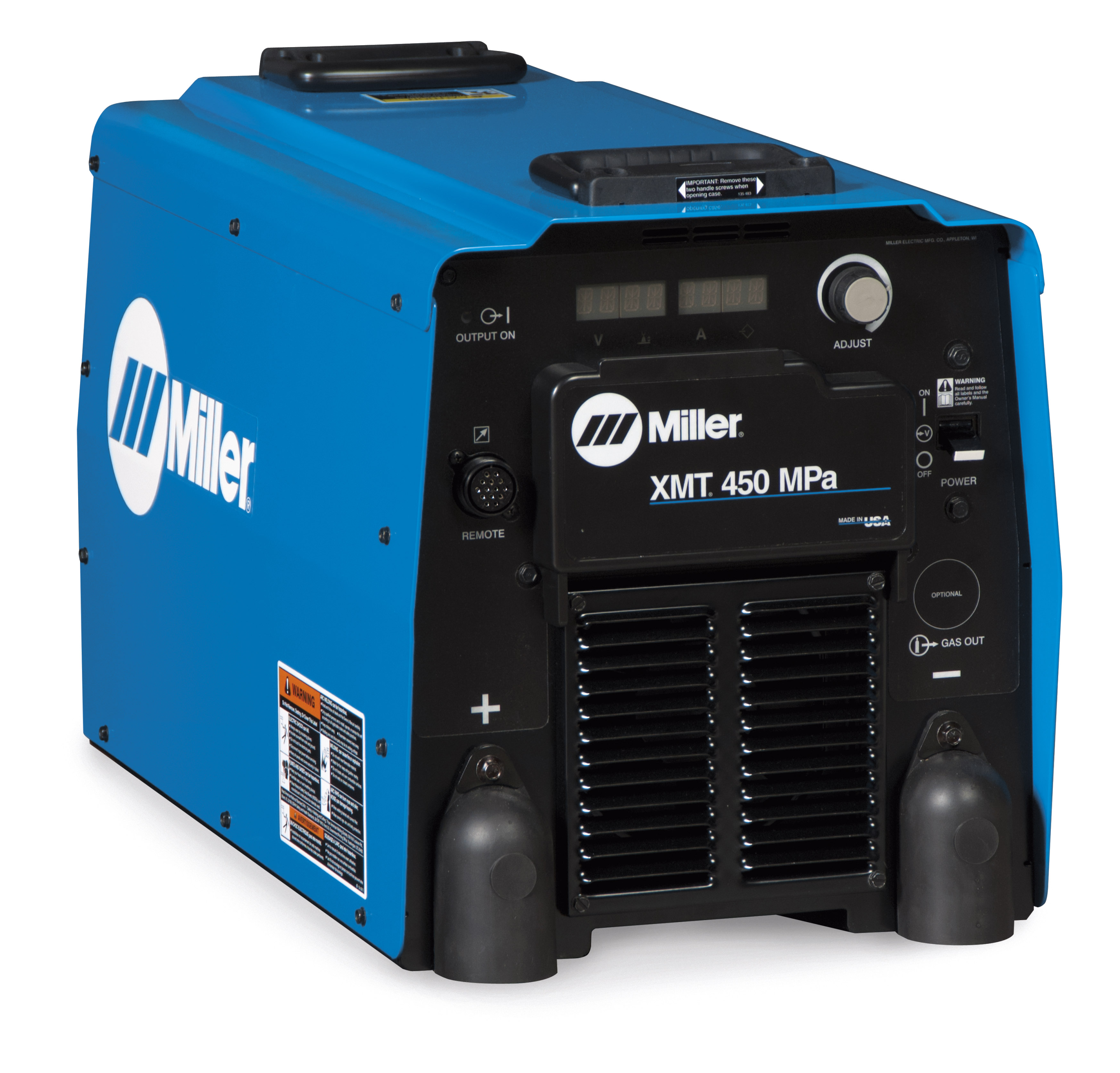

Miller XMT 450 MPa 575 V Multiprocess Welder

Features

• Controls the arc in Pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile
• Provide reduced heat affected zone, weld in all positions, great for thick-to-thin metal, good gap filling ability and faster travel speeds and deposition
• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency
• Has the flexibility to be used with spool guns, feeders, and remote controls.
• Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage Large, dual digital meters are easy to view and presettable to ease setting weld output.
• Wind Tunnel Technology™ protects internal components, greatly improving reliability Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine
• 70 Series MPa wire feeder provides synergic pulsed MIG - as you increase/decrease the wire feed speed, the pulse parameters increase/decrease, matching the right amount of power output to match the wire speed, eliminating the need to make additional adjustments. 70 Series MPa adds wire deposition capabilities with Insight Core™. XR-AlumaFeed™ wire feeder provides Profile Pulse™ - TIG appearance with MIG simplicity and productivity Achieve “stacked dimes” without gun manipulation Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance

Specifications

• Country of Origin: United States
• Length: 27.25
• Width: 14.5
• Height: 17.25
• Weight: 122
• Input Phase: 3-Phase
• Max Open Circuit Voltage (VDC): 90
• Input Hz: 60 Hz
• Input Voltage: 575 V
• Weldable Metals: Aluminum|Specialty Metals|Stainless Steel|Steel
• Weld Output: CC / CV
• Input Phase - To Be Deleted: 3Phase
