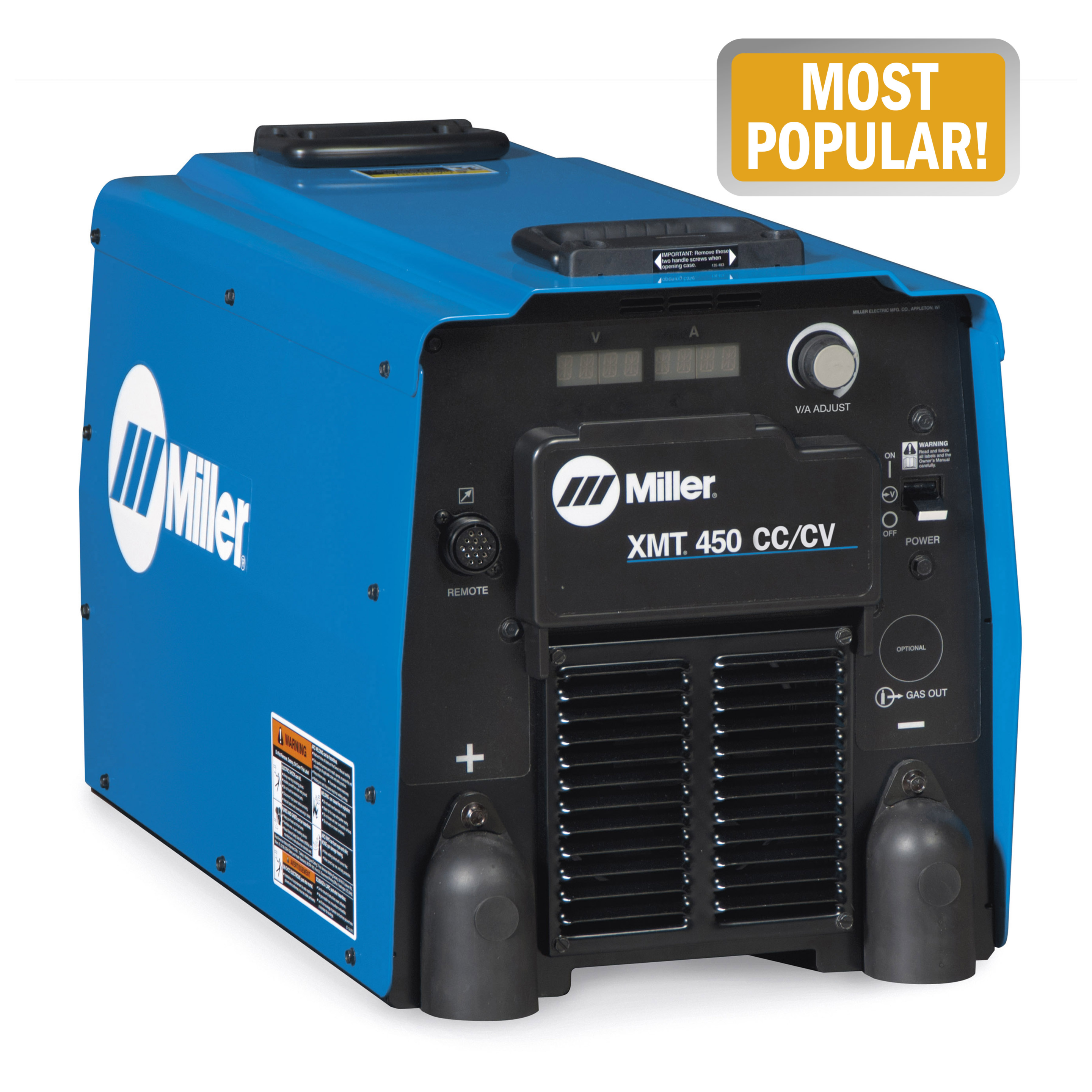

Miller XMT 450 CC/CV 230/460 V Multiprocess Welder

Features

• Has the flexibility to be used with spool guns, feeders, and remote controls.
• Wind Tunnel Technology™ protects internal components, greatly improving reliability Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine
• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency
• Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage Large, dual digital meters are easy to view and presettable to ease setting weld output.

Specifications

• Country of Origin: United States
• Length: 27.125
• Width: 14.5
• Height: 17.25
• Weight: 122
• Rated Carbon Diameter: 3/8 in (9.5 mm)
• Input Phase: 3-Phase
• Max Open Circuit Voltage (VDC): 90
• Input Hz: 60 Hz
• Input Voltage: 220/230/240 V|460/480 V
• Weldable Metals: Aluminum|Specialty Metals|Stainless Steel|Steel
• Current Type: DC
• Weld Output: CC / CV
• Input Phase - To Be Deleted: 3Phase
• Amperage Range: 15 A - 600 A
