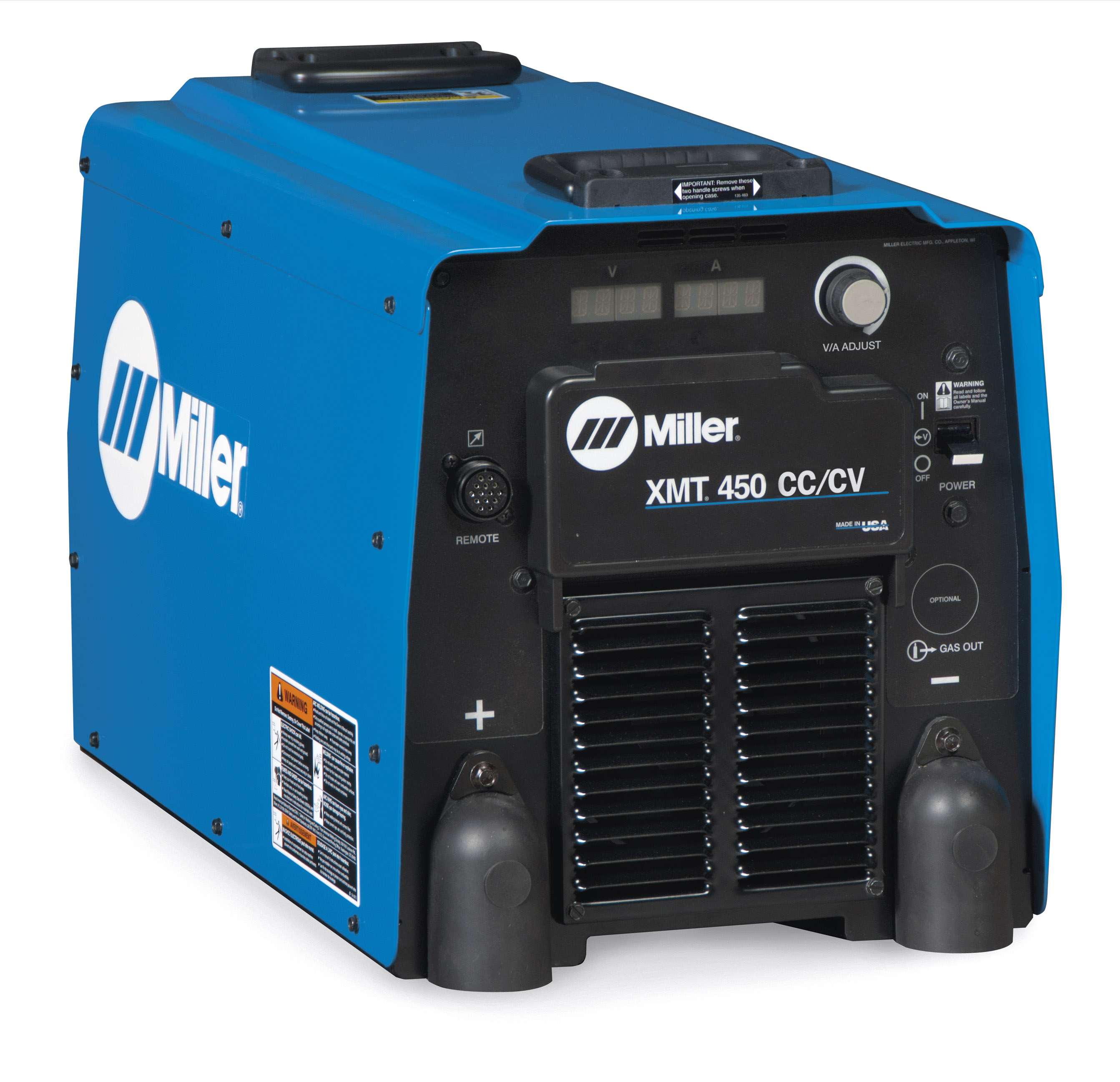

Miller XMT 450 CC/CV 575 V, ArcReach Multiprocess Welder

Features

• Maximize fleet compatibility and get the benefits of ArcReach when you pair Dimension 650 and ArcReach feeders with other ArcReach compatible products.
• Operators can precisely set arc voltage at the feeder and monitor the actual arc voltage and current delivered to the weld using the digital meters on the feeder This removes guesswork when it comes to adhering to weld procedures.
• Exclusive ArcReach technology uses the existing weld cables to communicate changes in voltage settings. With an ArcReach system, voltage and wire-feed-speed controls are conveniently located at the operator’s fingertips – not back at the power source
• More arc-on time and reduced exposure to workplace hazards for operators can be realized using ArcReach because less time is spent going back to the welding power supply to set process and arc voltage
• System automatically returns to XMT setting when ArcReach communication is terminated. For example, if the XMT is set to gouging at 575 amps and an ArcReach feeder is connected, the XMT will go to a MIG/FCAW process. If the feeder is disconnected, the XMT will go back to its previous setting (gouging at 575 amps).
• Wind Tunnel Technology™ protects internal components, greatly improving reliability Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine
• Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage Large, dual digital meters are easy to view and presettable to ease setting weld output.
• When an ArcReach feeder is connected to an XMT the feeder has full control and the XMT controls are disabled. While under ArcReach control, process and V/A adjustments are locked out, preventing accidental changes by personnel other than the welding operator
• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency

Specifications

• Country of Origin: United States
• Rated Carbon Diameter: 3/8 in (9.5 mm)
• Input Phase: 3-Phase
• Max Open Circuit Voltage (VDC): 75
• Input Hz: 60 Hz
• Input Voltage: 575 V
• Weldable Metals: Aluminum|Specialty Metals|Stainless Steel|Steel
• Current Type: DC
• Weld Output: CC / CV
• Input Phase - To Be Deleted: 3Phase

Downloads

Spec Sheet
CSA Cert
