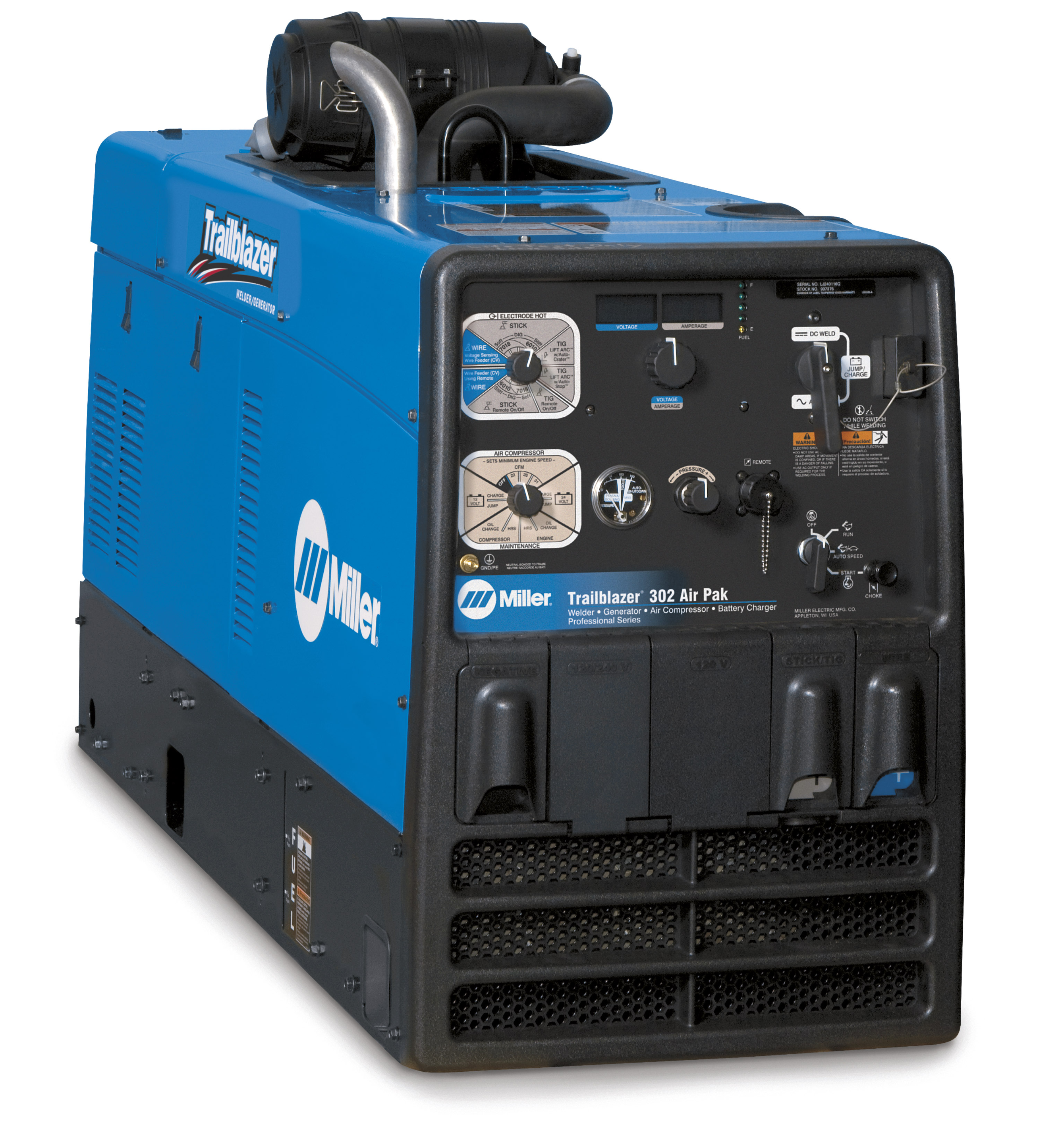

Miller Trailblazer 302 Air Pak Engine Driven Welder
Unavailable for online order
Request A Quote
Description
Powerful all-in-one tool is designed for repair and construction with unbeatable multiprocess weld quality, integrated rotary screw air compressor, and 13, 000 watts of auxiliary power for job site tools.
Features
- Powerful all-in-one tool is designed for repair and construction with unbeatable multiprocess weld quality, integrated rotary screw air compressor, and 13, 000 watts of auxiliary power for job site tools.
- Choose the Champion line of engine-driven welders from Hobart Welders for the power you need wherever and whenever you need it.
Specifications
- Country of Origin: United States
- Amperage Range: AmperageRange6
- Compressed Air : Yes
- Compressor Brand: Rotary-Screw Compressor
- Current Type: ACDC
- Max DC Welding Amperage: 300
- Min DC Welding Amperage: 10
- Weldable Metals: Aluminum, StainlessSteel, Steel
- Engine Brand: Kohler
- Engine IDle Speed: 2400RPM
- Horsepower: 27 hp
- Single-Phase Generator Continuous Power: 11000 W
- Single-Phase Generator Peak Power: 13000 W
- Compressor Free Air Delivery: 31 cfm (0.88 m3 /min) at 3, 600 rpm / 28 cfm (0.79 m3 /min) at 3, 000 rpm / 22 cfm (0.62 m3 /min) at 2, 400 rpm (idle)
- Compressor Working Pressure: 80–160 psig
- Compressor Duty Cycle: 100%
- Compressor Automatic Shutdown: High pressure (160 psi)
- Battery Charge: 10 - 75 A
- Crank Assist: 450 A, 12V / 350 A, 24 V
Downloads
Additional information
| Weight | 805.000 lbs |
|---|---|
| Dimensions | .00 × .00 × .00 in |
| Vendor Part # | 907549001 |
