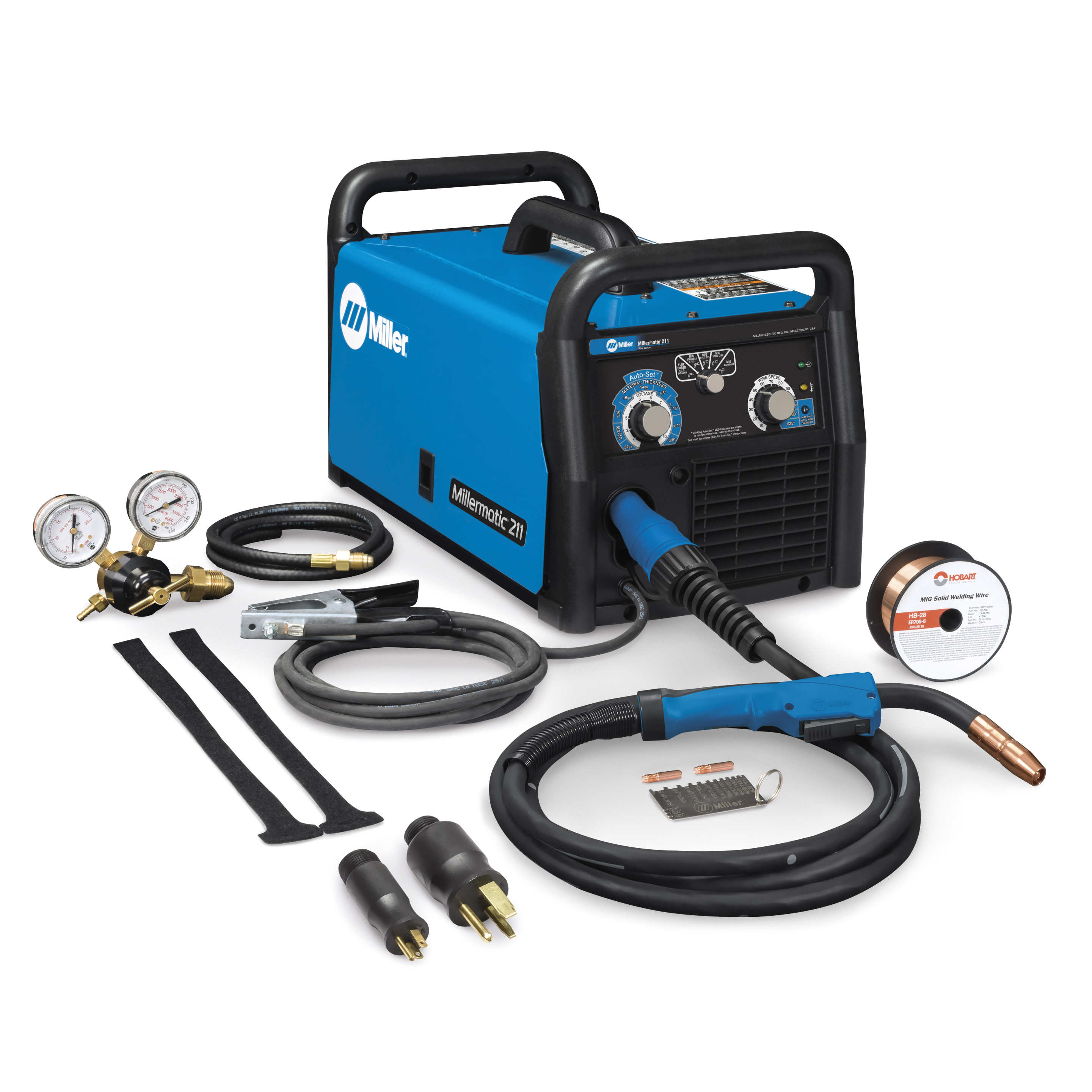

Miller Millermatic 211 MIG Welder

Features

• Advanced Auto-Set™: Advanced Auto-Set™ now includes five different wire/gas combinations and .024, .030 and .035-inch Wire The easiest welder to use just became more versatile
• Inverter Technology: Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine The arc is extremely forgiving to variations in arc length and travel speeds.
• Quick Select™ Drive Roll: Quick Select™ drive roll makes setup quicker by offering three grooves—two for different size solid wire and a third for flux-cored wire
• Auto Spool Gun Detect™: Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
• Multi-voltage plug (MVP™): Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.
• New Drive System: Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup for up to 15-foot MIG guns.
• Smooth-Start™: Smooth-Start™ provides a smooth, spatter-free start. It’s the best-starting machine in the small MIG machine category
• Generator Compatible: The Millermatic 211 will be able to operate and provide full output when powered by generators with 7000 Watt (7K) output or higher, such as a Miller Bobcat or Trailblazer series generator Limited output will occur when used with smaller generators.
• Fan-On-Demand™: Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine

Specifications

• Country of Origin: United States
• Length: 20.5
• Width: 11.25
• Height: 12.5
• Weight: 38
• Max Open Circuit Voltage: 54 VDC
• Input Phase: Single Phase
• Material Type: Aluminum | SolidSteel | FluxCored | Stainless
• Amperage Min: 30 A
• Amperage Max: 230 A
• Amperage Range: 30 A - 230 A
• Min Thickness - ga - Mild Steel: 24 ga
• Min Wire Feed Speed - IPM: 60 IPM
• Min Wire Diameter - in - Solid Steel: 0.023 in
• Max Wire Diameter - in - Solid Steel: 0.035 in
• Max Wire Feed Speed - IPM: 600 IPM
• Min Thickness - mm - Mild Steel: 0.6 mm
• Input Voltage: 110V | 115V | 120V | 220V | 230V | 240V
• Min Thickness - ga - Aluminum: 18 ga
• Min Thickness - mm - Aluminum: 1.2 mm
• Max Thickness - in - Mild Steel: 0.375 in
• Max Thickness - in - Aluminum: 0.375 in
• Max Wire Feed Speed - m/min: 15.2 m/min
• Min Wire Feed Speed - m/min: 1.5 m/min
• Display Max Thickness - Aluminum: 3/8 in
• Display Min Thickness - Aluminum: 18 ga
• Max Wire Diameter - in - Stainless: 0.035 in
• Max Wire Diameter - in - Flux Cored: 0.045 in
• Max Wire Diameter - mm - Solid Steel: 0.9 mm
• Max Wire Diameter - mm - Stainless: 0.9 mm
• Max Wire Diameter - mm - Flux Cored: 1.2 mm
• Min Wire Diameter - in - Stainless: 0.023 in
• Min Wire Diameter - in - Flux Cored: 0.03 in
• Min Wire Diameter - mm - Solid Steel: 0.6 mm
• Min Wire Diameter - mm - Stainless: 0.6 mm
• Min Wire Diameter - mm - Flux Cored: 0.8 mm
• Current Type: DC
• Weldable Metals: Aluminum | Stainless Steel | Steel
• Input Hz: 50/60 Hz
• Material Thickness Display: Aluminum 18 ga. (1.2 mm) - 3/8 in (9.5 mm) | Mild Steel 24 ga. (0.5 mm) - 3/8 in (9.5 mm)
• Wire Diameter Display: Stainless 0.024 in - 0.035 in | Stainless 0.6 mm. - 0.9 mm. | Solid Steel 0.6 mm. - 0.9 mm. | Solid Steel 0.024 in - 0.035 in | Flux Cored 0.03 in - 0.045 in | Flux Cored 0.8 mm. - 1.2 mm.
• Wire Feed Speed Display: 1.5 m/min - 15.2 m/min | 60 IPM - 600 IPM

Downloads

Spec Sheet
