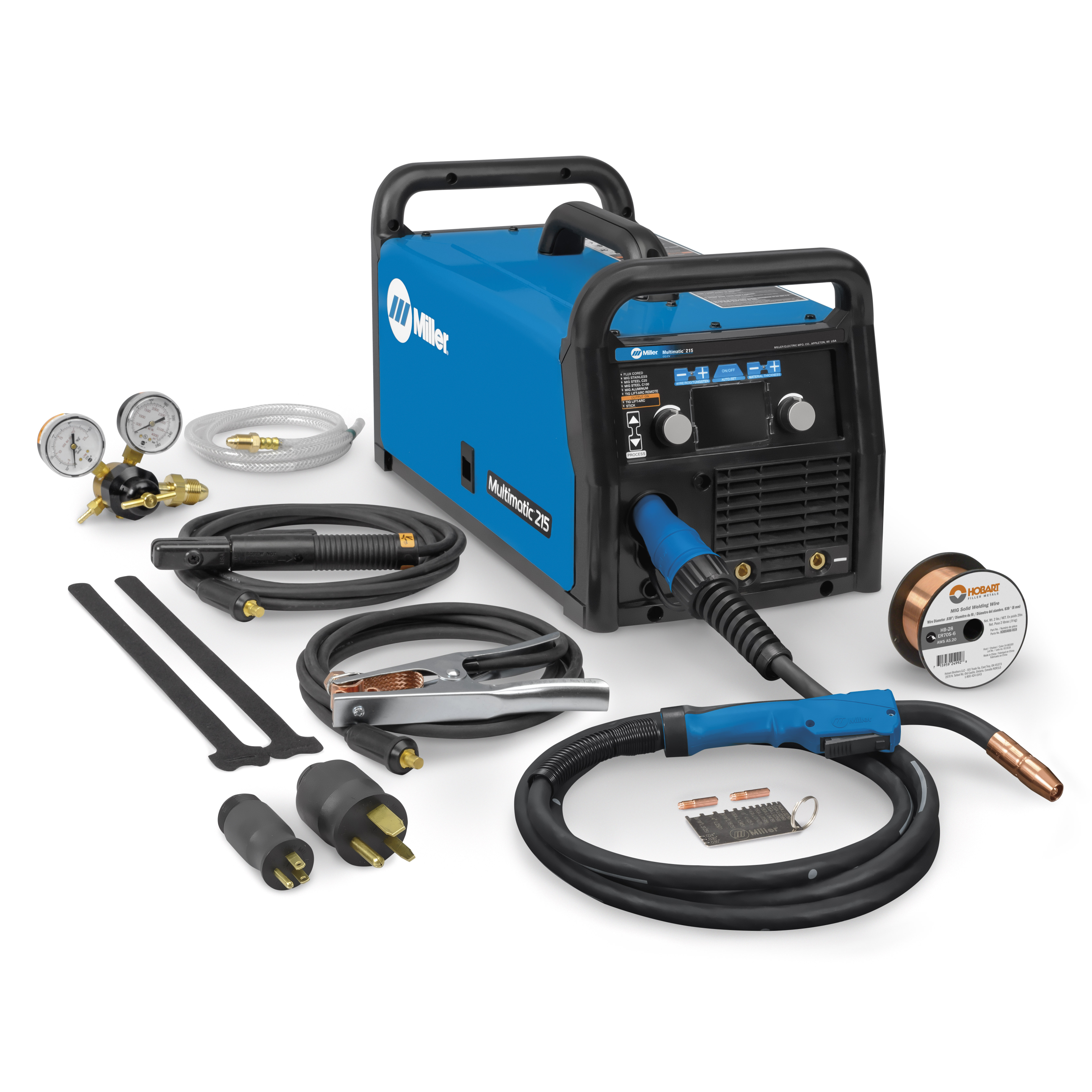

Miller Multimatic 215 Multiprocess Welder

Features

• Multiprocess Capabilities: MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills.
• Color LCD with Auto-Set™ Elite: Auto-Set Elite can be used on multiple materials and multiple processes with the ability to fine-tune your settings. Simple to set up and use!
• Inverter Technology: Inverter technology combines best-in-class arc characteristics with the portability of a 38-pound machine The arc is extremely forgiving to variations in arc length and travel speeds.
• Two Gas Connections: There are two gas connections on the back of the machine—one for MIG and one for TIG.
• Auto Spool Gun Detect™: Auto Spool Gun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch. The Spoolmate 100 and Spoolmate 150 are compatible with the Multimatic 215.
• Multi-Voltage Plug (MVP): Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• Angled Drive System with Quick Select™ Drive Roll: Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire
• Smooth-Start™: Smooth-Start™ provides smooth, spatter-free MIG starts.
• Generator Compatible: The Multimatic 215 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator Limited output will occur when used with smaller generators.
• Fan-On-Demand™: Cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through machine

Specifications

• Country of Origin: United States
• Length: 20.5
• Width: 11.25
• Height: 12.5
• Weight: 38
• Max Open Circuit Voltage: 58 VDC
• Input Phase: Single Phase
• Min Wire Feed Speed IPM: 60 IPM
• Max Wire Feed Speed IPM: 600 IPM
• Input Voltage: 110V | 115V | 120V | 220V | 230V | 240V
• Amperage Min: 20 A
• Amperage Max: 230 A
• Amperage Range: 20 A - 230 A
• Min Wire Feed Speed MMin: 1.2 m/min
• Max Wire Feed Speed MMin: 10.8 m/min
• Wire Feed Speed Display: 1.8 m/min - 10.8 m/min | 70 IPM - 425 IPM
• Current Type: DC
• Weldable Metals: Aluminum | Stainless Steel | Steel
• Input Hz: 50/60 Hz
• Material Thickness Display: Mild Steel 24 ga. - 3/8 in (MIG) | Mild Steel 24 ga. - 3/8 in (MIG) | Mild Steel 16 ga. - 3/8 in (Stick) | Aluminum 18 ga. - 3/8 in (MIG)
