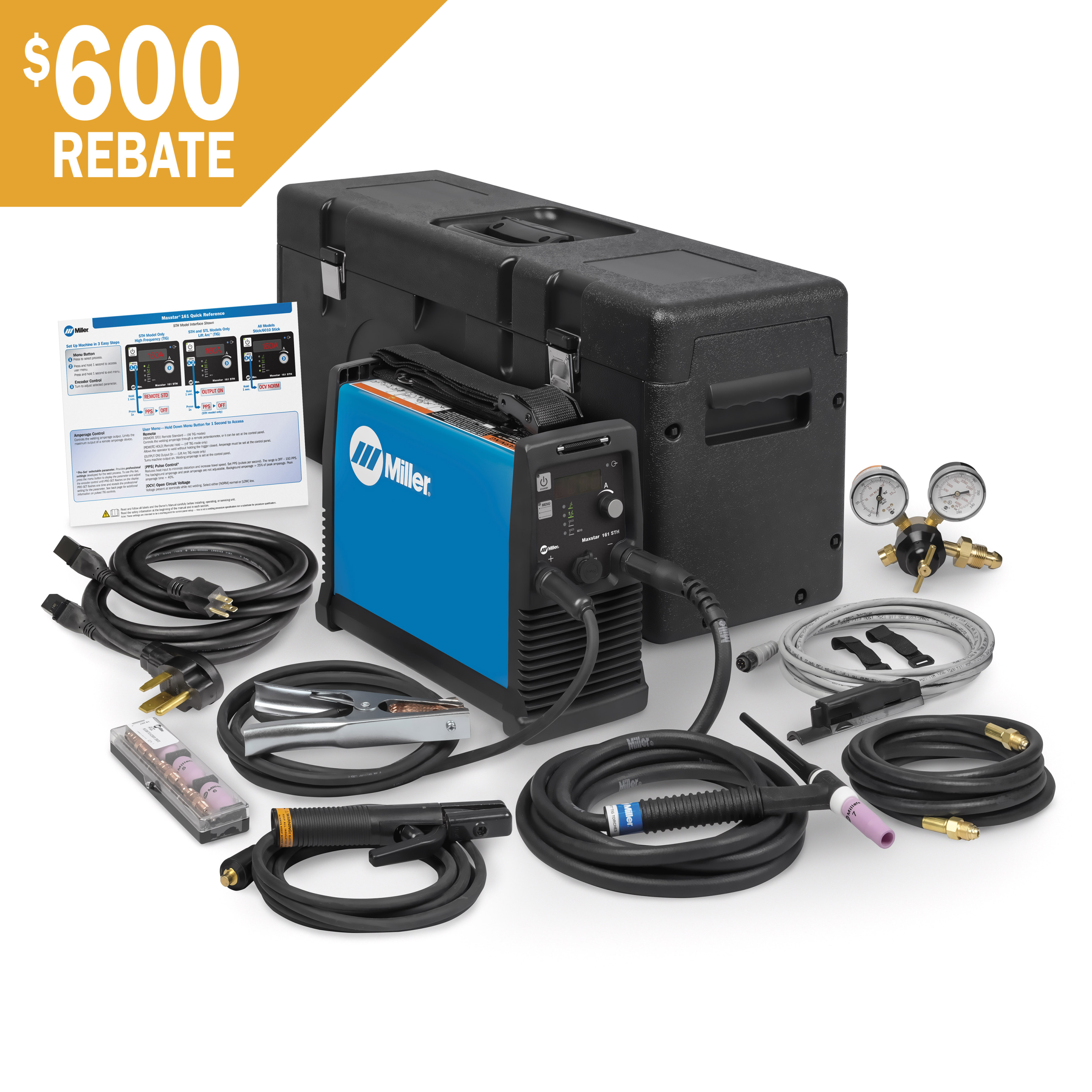

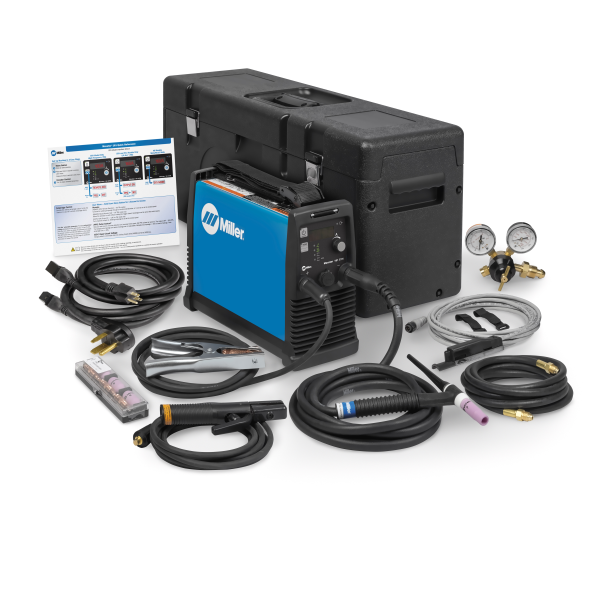

Miller Maxstar 161 STH 120-240 V, X-Case, Fingertip Contractor Package, TIG/Stick Welder

Features

• Best of class - Provides maximum portability and performance in the most compact TIG/Stick packages in the industry Dependability and performance all in one machine
• TIG welders from Hobart Welders make precise, critical welds when joining metals. EZ-TIG™ offers an easy-to-use interface for gas tungsten arc welding

Specifications

• Country of Origin: United States
• Amperage Range: AmperageRange22
• Current Type: DC
• Input Hz: 50/60 Hz
• Input Phase: 1Phase
• Input Voltage: 110115120V, 220230240V
• Material Thickness Display : Steel7
• Metal Type: Steel
• Weldable Metals: StainlessSteel, Steel
• Amperage Max: 160 A
• Amperage Min: 5 A
• Max Open Circuit Voltage: 48 VDC
• Max Thickness - Steel: 0.19 in
• Min Thickness - Steel: 0.02 in

Downloads

Primary Spec Sheet
Safety Data Sheet
