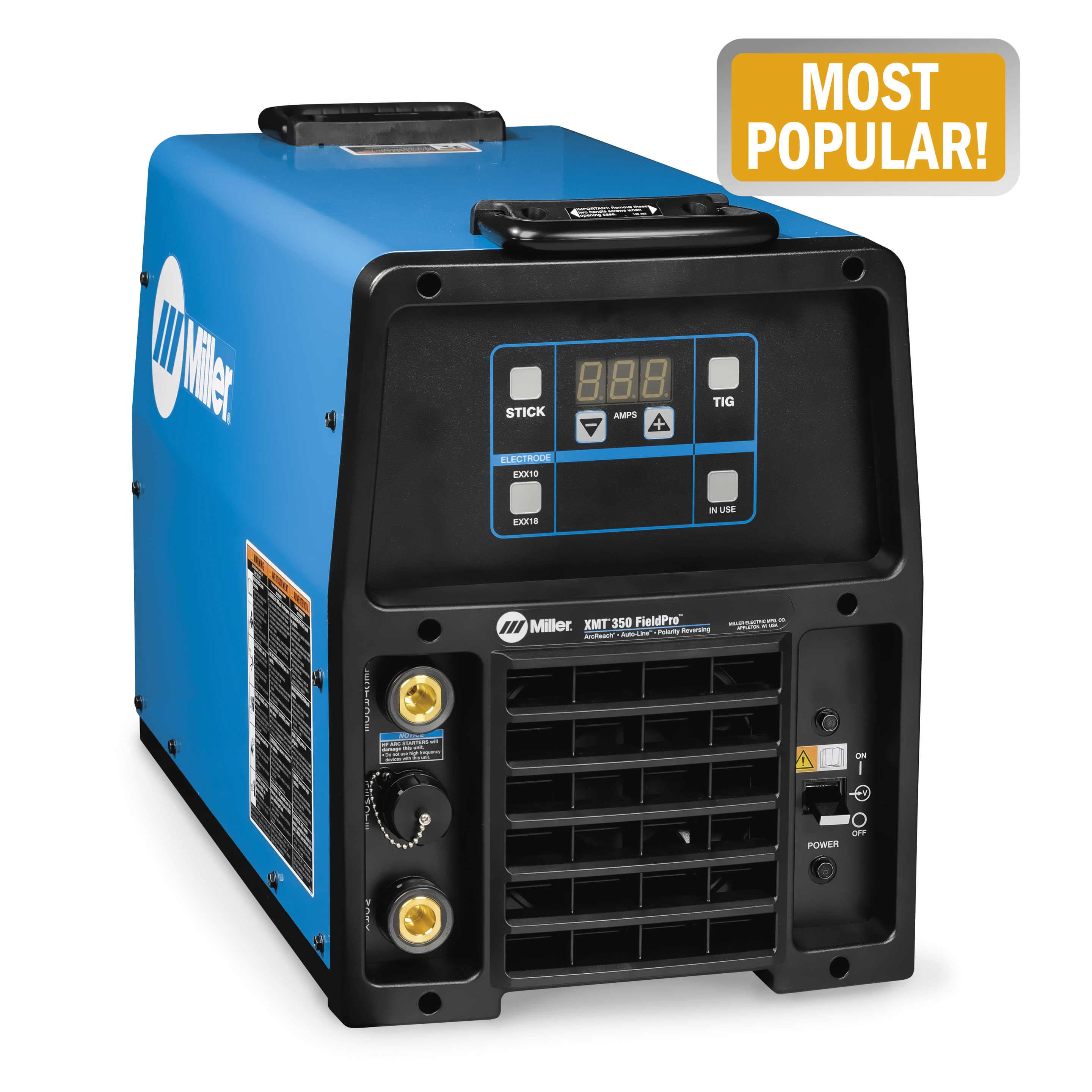

Miller XMT 350 FieldPro with Polarity Reversing, Tweco, Multiprocess Welder

Features

• ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote
• XMT 350 FieldPro systems maximize weld quality, reduce training time and minimize weld defects even while using weld cables that are hundreds of feet long
• XMT 350 FieldPro welders and ArcReach accessories have been extensively field-proven and deliver the performance you need with ruggedly constructed internal components and Wind Tunnel Technology™.
• Maximize fleet compatibility and get the benefits of ArcReach when you pair XMT 350 FieldPro welders and ArcReach feeders with other ArcReach compatible products.
• Inadvertent parameter changes by other jobsite workers can be avoided because connecting an ArcReach accessory to the power source automatically locks out the power source’s panel controls.
• Automatically sets the power source to the correct weld process based on the polarity applied to the weld accessory and decreases the chance of an incorrect weld process.
• Cable Length Compensation (CLC™) ensures that the voltage a weld operator sets is the voltage they get by automatically adjusting voltage based on weld cable length, even hundreds of feet away from the power source (available only with XMT 350 FieldPro Systems).
• The chances of slip, trip and fall injuries are decreased because ArcReach technology allows weld operators to make parameter changes at the wire feeder or remote instead of having to travel through multistory and cluttered jobsites back to the power source
• Weld operators have more control and can Adjust While Welding (AWW™) to make fast, easy weld parameter changes at the wire feeder or remote — even while the arc is on Only Miller offers this advanced solution
• Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required.
• Take charge of your field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C). This system uses induction heating to generate heat in workpieces, so welders can do their own preheating quickly and safely A part of the ArcReach technology platform, the ArcReach Heater is an accessory for select ArcReach welding power sources.

Specifications

• Country of Origin: United States
• Length: 29
• Width: 16
• Height: 19
• Weight: 100.5
• Rated Carbon Diameter: 1/4 in (6.4 mm)
• Max Open Circuit Voltage (VDC): 75
• Input Hz: 50/60 Hz
• Input Voltage: 208 V|220/230/240 V|380/400 V|460/480 V|575 V
• Weldable Metals: Aluminum|Specialty Metals|Stainless Steel|Steel
• Current Type: DC
• Weld Output: CC / CV
• Input Phase - To Be Deleted: 1and3phase
• Amperage Range: 15 A - 425 A

Downloads

Spec Sheet
CSA Cert
