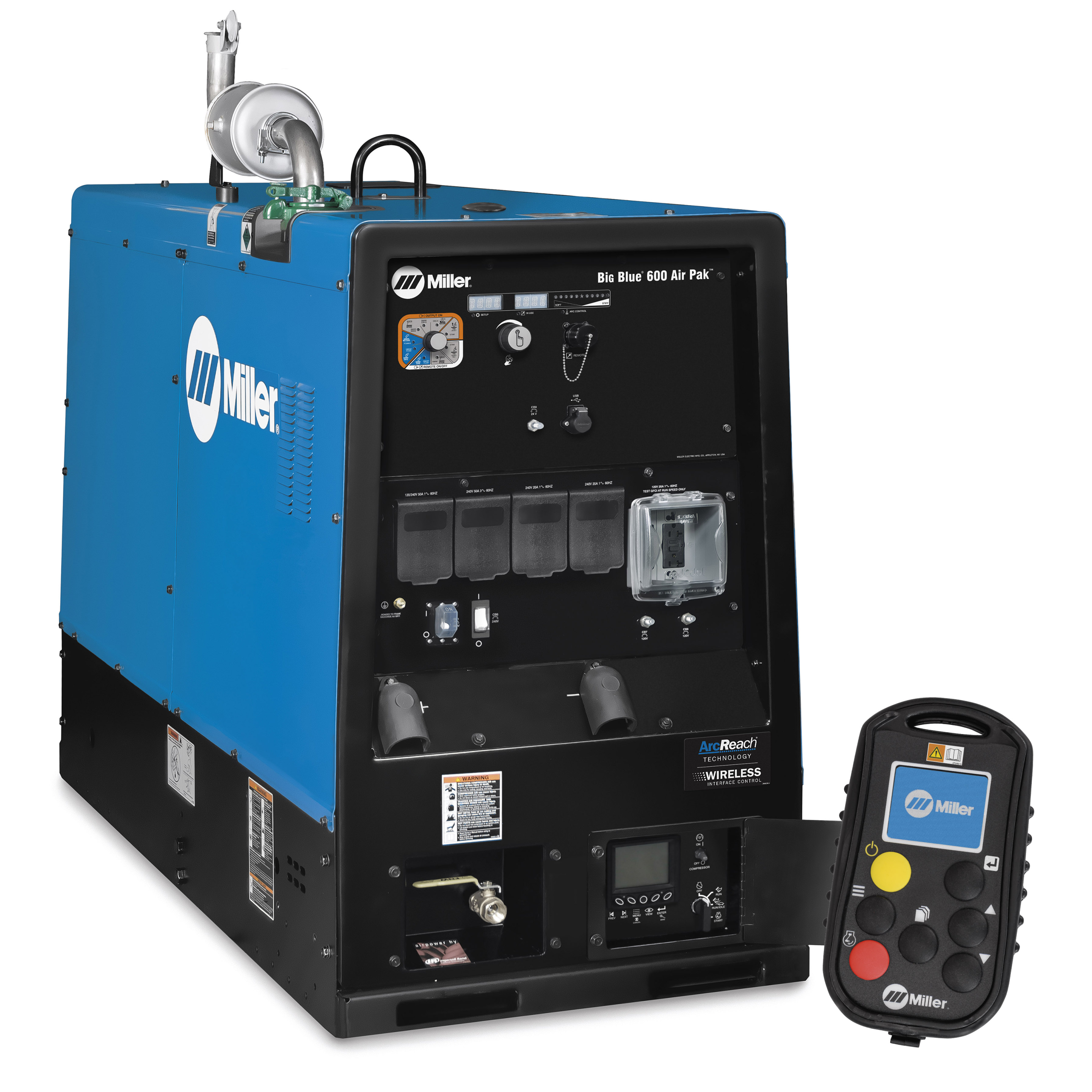

Miller Big Blue 600 Air Pak (Deutz) Truck Mount Spec with Wireless Interface Control
Engine Driven Welder
Unavailable for online order
Request A Quote
Description
The Big Blue 600 Air Pak Work Truck Model has the critical controls located within easy reach of a ground based operator when the machine is mounted on the bed of a large-body truck. Now with optional Wireless Interface Control, you can work hassle-free with full control of the machine in the palm of your hand.
Features
- For field-based work that requires single-operator power for welding, carbon arc gouging, auxiliary power, or running an air compressor to perform critical repair and maintenance functions.
- Choose the Champion line of engine-driven welders from Hobart Welders for the power you need wherever and whenever you need it.
Specifications
- Country of Origin: United States
- Amperage Range: AmperageRange30
- Cold Weather Starting Aids : EngineBlockHeater, GlowPlugs
- Compressed Air : Yes
- Compressor Brand: Ingersoll Rand Screw-Type
- Current Type: DC
- Max DC Welding Amperage: 600
- Min DC Welding Amperage: 20
- Rated Carbon Diameter : 38in95mm
- Weldable Metals: StainlessSteel, Steel
- Rated Carbon Diameter: 38in95mm
- Engine Brand: Deutz
- Engine Compliance: T4F
- Engine IDle Speed: 1350RPM
- Horsepower: 65.7 hp
- Max Open Circuit Voltage: 92 VDC
- Single-Phase Generator Continuous Power: 12000 W
- Single-Phase Generator Peak Power: 15000 W
- Three-Phase Generator Continuous Power: 20000 W
- Three-Phase Generator Peak Power: 27000 W
- Compressor Free Air Delivery: 60 cfm (1.70 m3 /min) / IDle: 40 cfm (1.13 m3 /min)
- Compressor Working Pressure: 100 psig
- Compressor Duty Cycle: 100%
- Compressor Automatic Shutdown: Oil temperature
Downloads
Additional information
| Weight | 2090.000 lbs |
|---|---|
| Dimensions | 71.00 × 30.00 × 48.00 in |
| Vendor Part # | 907750004 |
