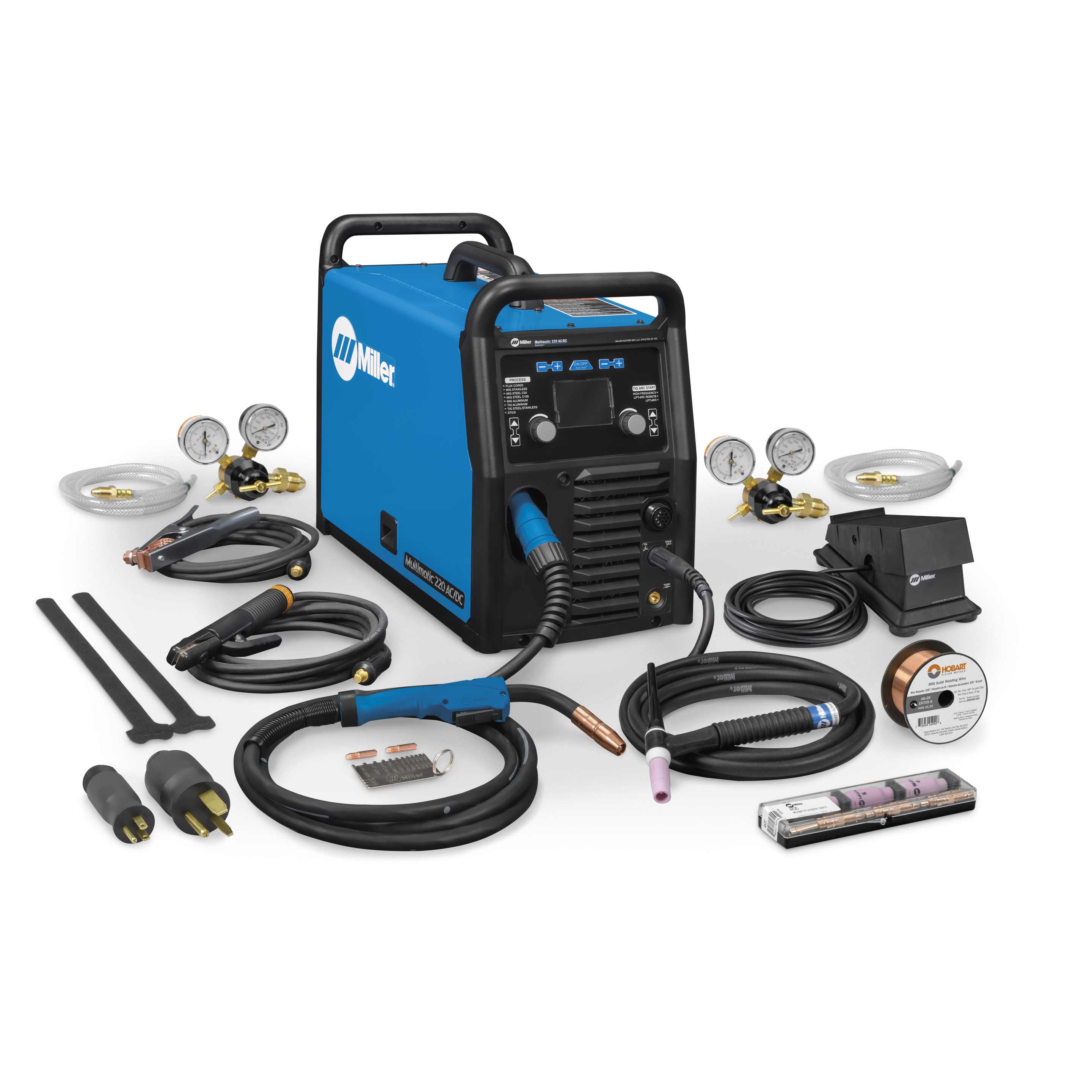

Miller Multimatic 220 AC/DC Multiprocess Welder

Features

• All in One: Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
• QuickTech™: Automatically determines the polarity MIG gun and TIG torch can stay connected at the same time Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes. Automatically recalls the settings from the last process used.
• Multi-Voltage Plug (MVP): Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• Auto-Set™ Elite: offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Pro-Set™ Feature: Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
• 14-Pin Controlled Operator Alternatives: The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• Weighing Only 56 Pounds: The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more
• Dependable Arc Starts: Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time
• Generator Compatible: The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator Limited output will occur when used with smaller generators.

Specifications

• Country of Origin: United States
• Length: 21.5
• Width: 11.25
• Height: 17.5
• Weight: 56
• Max Open Circuit Voltage: 46 VDC
• Input Phase: Single Phase
• Welding Mode: CCCV
• Min Wire Feed Speed IPM: 60 IPM
• Max Wire Feed Speed IPM: 600 IPM
• Input Voltage: 110V | 115V | 120V | 220V | 230V | 240V
• Amperage Min: 20 A
• Amperage Max: 230 A
• Min Wire Feed Speed MMin: 1.5 m/min
• Max Wire Feed Speed MMin: 15.2 m/min
• Wire Feed Speed Display: 1.5 m/min - 15.2 m/min | 60 m/min - 600 m/min
• Current Type: AC | DC
• Weldable Metals: Aluminum | Stainless Steel | Steel
• Input Hz: 50/60 Hz
• Material Thickness Display: Mild Steel 24 ga. - 3/8 in (MIG) | Mild Steel 16 ga. - 3/8 in (Stick) | Mild Steel 24 ga. - 1/4 in (TIG) | Aluminum 24 ga. - 1/4 in (TIG) | Aluminum 18 ga. - 3/8 in (MIG)
