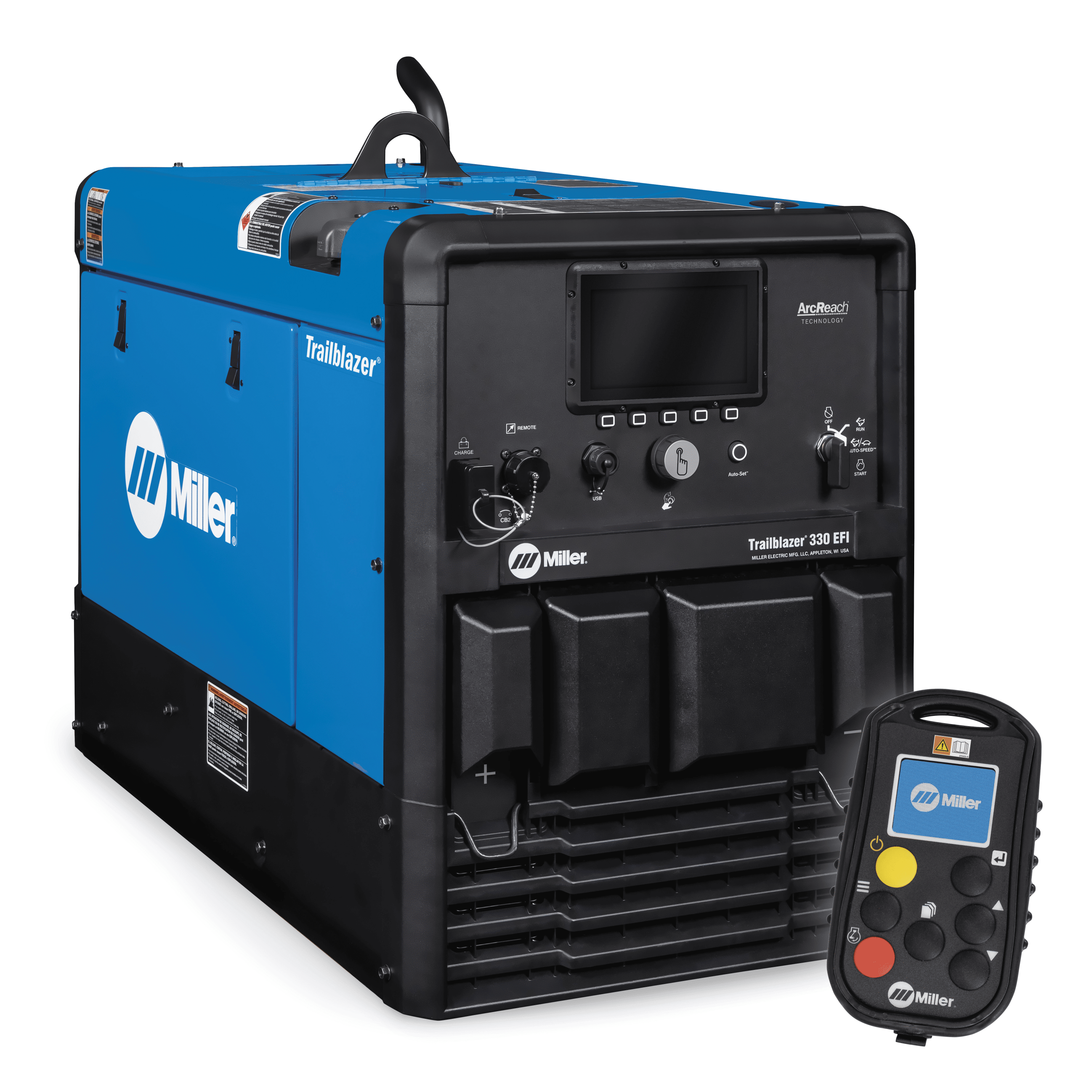

Miller Trailblazer 330 (Kohler) EFI w/Excel Power, Battery Charge/Crank Assist & Wireless Interface Control

Features

• Easy arc starts and less spatter
• With its intuitive design, the daily maintenance of our Trailblazer engine-driven welder is fast and easy
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source
• Over 80 pounds lighter and 13 percent smaller than previous models.
• Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite
• Full auxiliary power at any setting
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise
• Power at idle — a Miller exclusive Unlike competitive machines that provide auxiliary power only at 3, 600 rpm (max), Excel power delivers a full 2, 400 watts (20 A) of 120-volt inverter-based, pure sine wave power at all speeds, including idle With Excel power you can operate jobsite tools like grinders at quiet, fuel-saving speeds. Refueling time and operating costs are reduced with Excel power, which means more productivity and profitability Plus everyone on the jobsite gets a better working environment because noise levels and exhaust emissions are lowered. Excel power — available only from Miller
• Elevate your performance and get full control of your machine in the palm of your hand, from wherever you are on the jobsite With wireless interface control,  you can: Change welding processes Adjust parameters Select and save preset programs Turn the machine on/off View service reminders And more! Extend time between fill ups and maintenance intervals while eliminating the need to go back to your machine to make adjustments.
• Digital interface speeds machine setup and makes it less complicated.
• Machine provides up to 150 amps of DC power to quickly charge 12- and 24-volt batteries. Jobsite equipment with weak batteries can get up to 300 amps of crank assist power

Does Not Include

• Weld leads

Specifications

• Country of Origin: United States
• Engine Weld Speed: Advanced Auto-Speed(TM) technology: Varies engine speed from 2, 400-3, 600 rpm to match weld output
• Rated Output: CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle
• Rated Carbon Diameter: 1/4 in (6.4 mm)
• Max Open Circuit Voltage (VDC): 107
• Fuel Type: Gasoline
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Min DC Welding Amperage: 20
• Current Type: DC
• Sound Rating: 65 dB @ idle and 73.5 dB @ max weld
• Max DC Welding Amperage: 330
• Engine Brand: Kohler
• Horsepower (hp): 23
• Single-Phase Generator Peak Power (W): 12000
• Amperage Range: 20 A - 330 A
• Weld Output: CC / CV
• Fuel Tank Size: 11 Gallon
• Single-Phase Generator Continuous Power (W): 10500

Downloads

Spec Sheet
