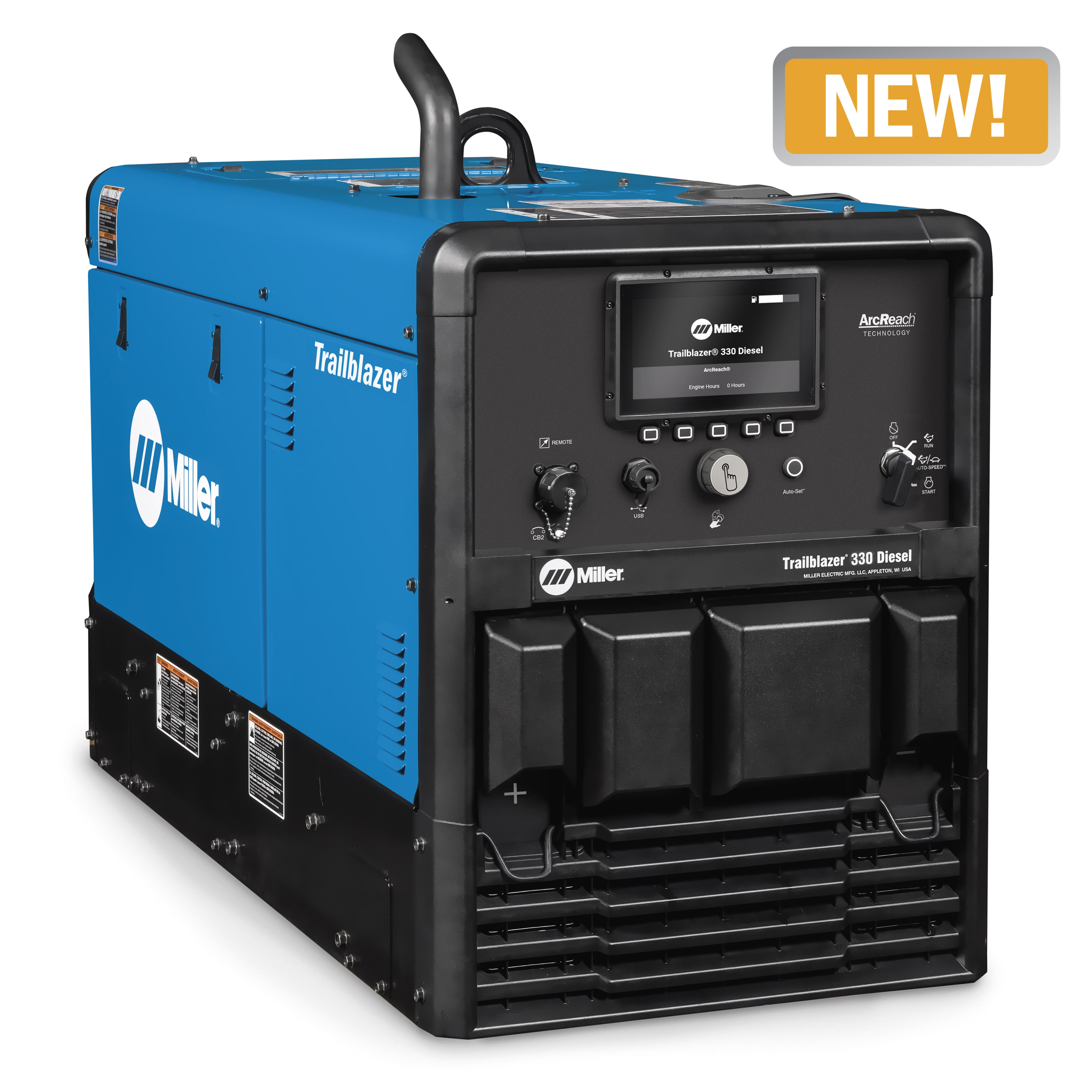

Miller Trailblazer 330 Diesel (Kubota)

Features

• Easy arc starts and less spatter
• With its intuitive design, the daily maintenance of our Trailblazer engine-driven welder is fast and easy
• Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite
• Full auxiliary power at any setting
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise
• Digital interface speeds machine setup and makes it less complicated.

Does Not Include

• Weld leads

Specifications

• Country of Origin: United States
• Engine Weld Speed: Advanced Auto-Speed(TM) technology: Varies engine speed from 1, 800-3, 600 rpm to match weld output
• Rated Output: CC/DC Stick/TIG 330 A at 31 V, 100% duty cycle, CV/DC MIG/FCAW 330 A at 3.25 V, 100% duty cycle
• Rated Carbon Diameter: 1/4 in (6.4 mm)
• Max Open Circuit Voltage (VDC): 107
• Cold Weather Starting Aids: Glow Plugs
• Fuel Type: Diesel
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Min DC Welding Amperage: 20
• Current Type: DC
• Engine Compliance: T4F
• Sound Rating: 74.7 dB @ idle and 80.2 dB @ max weld
• Max DC Welding Amperage: 330
• Engine Brand: Kubota
• Horsepower (hp): 24.8
• Single-Phase Generator Peak Power (W): 12000
• Amperage Range: 20 A - 330 A
• Weld Output: CC/CV
• Fuel Tank Size: 11 Gallon
• Single-Phase Generator Continuous Power (W): 10500
