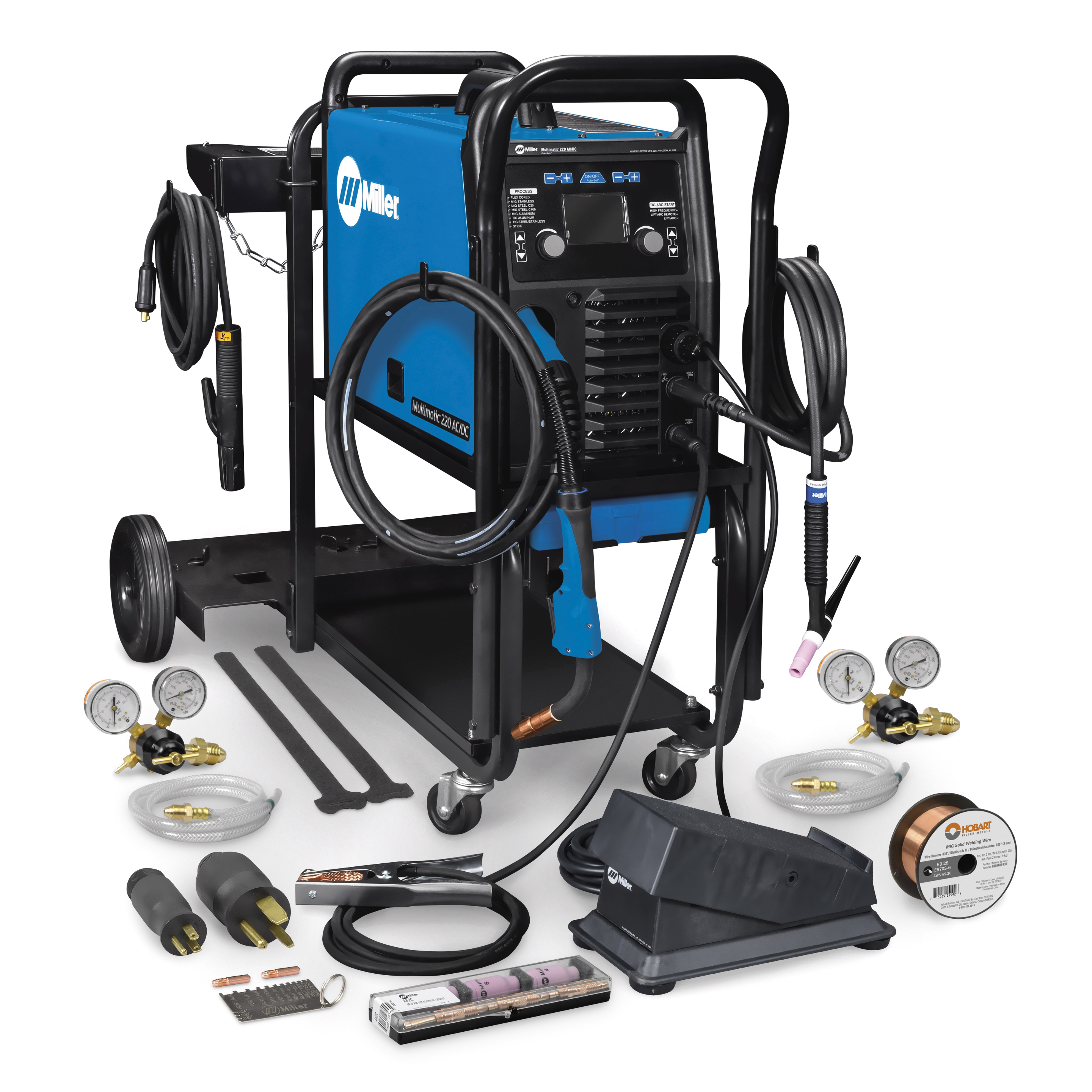

Miller Multimatic 220 AC/DC Welder w/ Dual Cylinder Welding Cart

Features

• Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• Automatically determines the polarity MIG gun and TIG torch can stay connected at the same time Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes. Automatically recalls the settings from the last process used.
• Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
• offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
• The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more
• Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time
• The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator Limited output will occur when used with smaller generators.
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.

Includes

• Multimatic® 220 AC/DC
• 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
• 10 ft MDX™-100 MIG Welding Gun
• 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
• 12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
• RFCS-14 HD foot control with 20 ft (6 m) cord
• 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
• Two Argon and AR/CO2 mix regulator/flow gauge with hoses
• Spool of Hobart® .030 in (0.8 mm) solid wire
• Two contact tips for .030 in (0.8 mm) wire
• Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
• AK2C TIG torch accessory kit
• Material thickness gauge #229895
• Hook-and-loop cord wraps
• Dual Cylinder Running Gear

Does Not Include

• Safety Equipment
• Spool gun for aluminum welding
• Shielding gas

Specifications

• Country of Origin: United States
• Min Wire Feed Speed MMin (mmin): 1.5
• Input Phase: 1-Phase
• Max Open Circuit Voltage (VDC): 46
• Display Max Thickness Mild Steel: 3/8 in
• Min Wire Feed Speed IPM (IPM): 60
• Welding Mode: CC/CV
• Wire Feed Speed Display: 1.5 m/min - 15.2 m/min| 60 m/min - 600 m/min
• Max Wire Feed Speed IPM (IPM): 600
• Input Hz: 50/60 Hz
• Spool Size: 8 in
• Input Voltage: 110/115/120 V|220/230/240 V
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Amperage Min (A): 20
• Current Type: AC / DC
• Weld Output: CC / CV
• Input Phase - To Be Deleted: 1Phase
• Material Thickness Display: Mild Steel 24 ga. - 3/8 in (MIG)|Mild Steel 16 ga. - 3/8 in (Stick)|Mild Steel 24 ga. - 1/4 in (TIG)|Aluminum 24 ga. - 1/4 in (TIG)|Aluminum 18 ga. - 3/8 in (MIG)
• Max Wire Feed Speed MMin (mmin): 15.2
• Display Min Thickness Mild Steel: 24 ga.

Downloads

Spec Sheet
