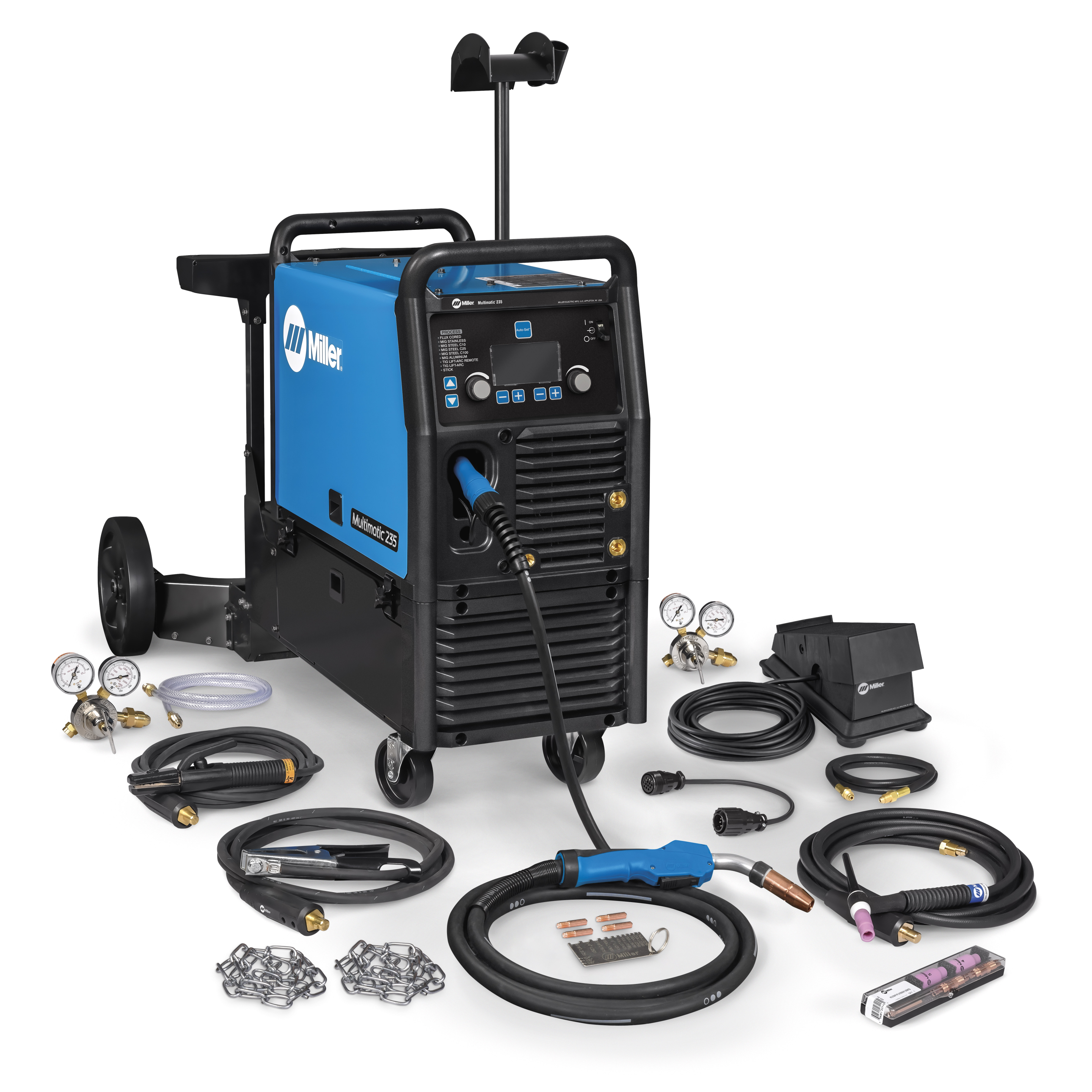

Miller Multimatic 235 Multiprocess Welder w/ EZ-Latch Dual Cylinder Running Gear & TIG Kit

Features

• Multiprocess Capabilities of MIG, Stick, DC Lift Arc TIG and DC Pulsed TIG
• 4.3-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
• Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Weight is reduced by more than 50 percent compared to transformer welding machines
• Kits comes complete with everything needed to TIG weld with the Multimatic 235. Includes 25-foot (7.6 m) Weldcraft™ A-150 TIG torch, RFCS-14 HD foot control, 10-pin to 14-pin adapter cord, flow gauge regulator with 5-foot (1.5 m) gas hose, and AK3C torch accessory kit.
• Quickly disconnects from the machine and enables portability Dual cylinder rack and storage compartment. Allows operator to easily store two gas cylinders. Includes elevated gun and cable rack to keep cables off the floor and tangle free
• Millers Gun-On-Demand™ allows operators to simply pull the trigger on MIG gun or Spoolgun Automatically detects and recalls the voltage, wire feed speed of the active gun
• AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue New Industrial Bernard AccuLock™ MDX contact tips provide superior arc performance
• The Multimatic 235 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator Limited output will occur when used with smaller generators.

Includes

• Power source with 10 ft. (3 m) industrial power cord
• 15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ MDX consumables for .030/.035 in (0.8/0.9 mm) wire
• 10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
• 10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
• 2 Flow gauge regulator and gas hose for argon or AR/CO2 mix
• .030/.035 in (0.8/0.9 mm) reversible drive rolls
• Extra contact tips
• Material Thickness Gauge
• EZ-Latch™ dual cylinder running gear with elevated gun and cable rack
• Multimatic 235/255 TIG kit
• Two chains to secure gas cylinders

Does Not Include

• Shielding gas (for welding with solid wire [GMAW])
• Flux cored drive rolls (for welding with flux cored wire [FCAW])
• Welding wire
• Personal safety products (helmet, gloves)

Specifications

• Country of Origin: United States
• Min Wire Feed Speed MMin (mmin): 1.5
• Rated Output: |CV: MIG/Flux 170 Amps at 22.5 V, 60% duty cycle| CC: Stick 150 Amps at 26 V, 60% duty cycle| CC: DC TIG 180 Amps at 17.2 V, 60% duty cycle|
• Input Phase: 1-Phase
• Max Open Circuit Voltage (VDC): 54
• Display Max Thickness Mild Steel: 3/8 in
• Min Wire Feed Speed IPM (IPM): 60
• Welding Mode: CC/CV
• Wire Feed Speed Display: 1.5 m/min - 15.2 m/min| 60 m/min - 600 m/min
• Max Wire Feed Speed IPM (IPM): 600
• Input Hz: 50/60 Hz
• Spool Size: 12 in
• Input Voltage: 208 V|220/230/240 V
• Weldable Metals: Aluminum|Stainless Steel|Steel
• Amperage Min (A): 20
• Current Type: DC
• Weld Output: CC / CV
• Input Phase - To Be Deleted: 1Phase
• Material Thickness Display: Mild Steel 24 ga. - 3/8 in (TIG)|Mild Steel 24 ga. - 3/8 in (MIG)|Mild Steel 16 ga. - 3/8 in (Stick)|Aluminum 18 ga. - 3/8 in (MIG)
• Amperage Range: 20 A - 235 A
• Max Wire Feed Speed MMin (mmin): 15.2
• Display Min Thickness Mild Steel: 24 ga
