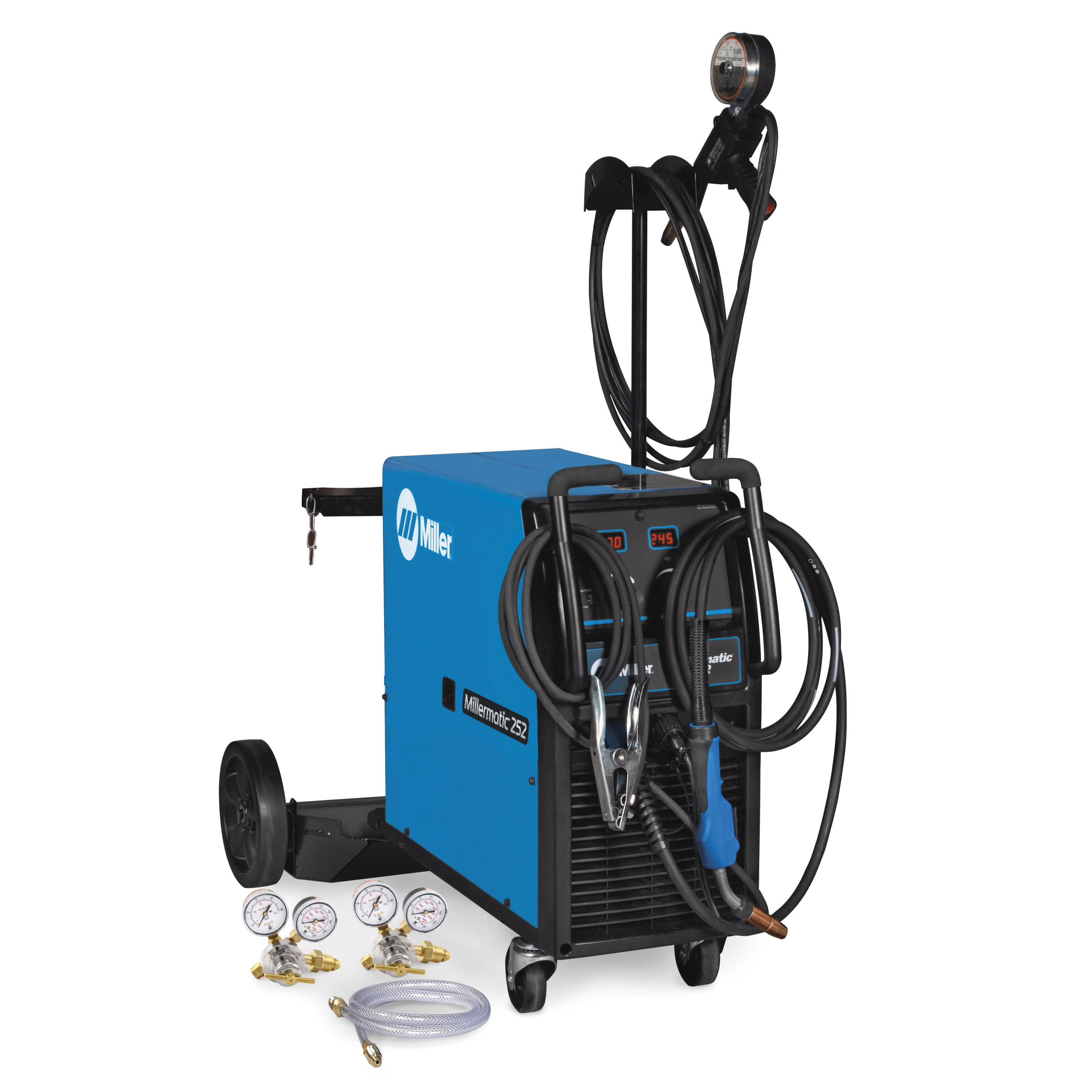

Miller Millermatic 252 MIG Welder Spoolgun Aluminum Package 230/460/575V

Features

• Welds material from 22 gauge - 1/2 in thick in a single pass. Highest output in its class. Find Millermatic 252 product specifications, features, and reviews.

Specifications

• Country of Origin: United States
• Amperage Range: AmperageRange21
• Current Type: DC
• Input Hz: 60 Hz
• Input Phase: 1Phase
• Input Voltage: 208V, 220230240V
• Display Max Thickness - Aluminum: 3/8 in (9.5 mm)
• Display Min Thickness - Aluminum: 14 ga. (1.9 mm)
• Material Thickness Display : Aluminum9, Mild Steel3
• Material Type: SolidSteel, Stainless, FluxCored
• Weldable Metals: Aluminum, StainlessSteel, Steel
• Wire Diameter Display: Stainless1, Stainless7, SolidSteel3, SolidSteel5, FluxCored2, FluxCored6
• Wire Feed Speed Display: WireFeedSpeed2, WireFeedSpeed13
• Amperage Max: 300 A
• Amperage Min: 30 A
• Max Open Circuit Voltage: 38 VDC
• Max Thickness - in - Aluminum: 0.38 in
• Max Thickness - in - Mild Steel: 0.5 in
• Max Thickness - mm - Aluminum: 9.5 mm
• Max Thickness - mm - Mild Steel: 13 mm
• Max Wire Diameter - in - Flux Cored: 0.045 in
• Max Wire Diameter - in - Solid Steel: 0.045 in
• Max Wire Diameter - in - Stainless: 0.045 in
• Max Wire Diameter - mm - Flux Cored: 1.2 mm
• Max Wire Diameter - mm - Solid Steel: 1.2 mm
• Max Wire Diameter - mm - Stainless: 1.2 mm
• Max Wire Feed Speed - IPM: 700 IPM
• Max Wire Feed Speed - m/min: 17.8 m/min
• Min Thickness - ga - Aluminum: 14 ga
• Min Thickness - ga - Mild Steel: 22 ga
• Min Thickness - mm - Aluminum: 1.9 mm
• Min Thickness - mm - Mild Steel: 0.9 mm
• Min Wire Diameter - in - Flux Cored: 0.03 in
• Min Wire Diameter - in - Solid Steel: 0.023 in
• Min Wire Diameter - in - Stainless: 0.023 in
• Min Wire Diameter - mm - Flux Cored: 0.8 mm
• Min Wire Diameter - mm - Solid Steel: 0.6 mm
• Min Wire Diameter - mm - Stainless: 0.6 mm
• Min Wire Feed Speed - IPM: 50 IPM
• Min Wire Feed Speed - m/min: 1.3 m/min
